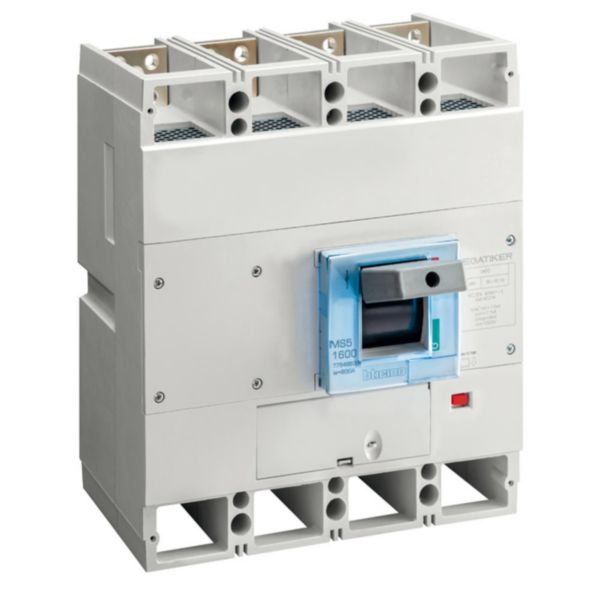

DPX³-I 1600 Trip-Free Switch | 4P | 1250A | IP30 Rated | @EA of 1 | by Legrand
The DPX³-I 1600 trip-free switch is designed for reliable low voltage electrical circuit protection and isolation, featuring a robust 1250A rating and IP30 protection. Ideal for industrial and commercial applications, this 4-pole switch ensures safe operation with its trip-free mechanism and auxiliary contacts, making it perfect for maintenance and emergency stop installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DPX³-I 1600 Trip-Free Switch | 4P | 1250A | IP30 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 422496
Alternatively Known As: Legrand DPX3-I 1600 Switch, Trip-Free Circuit Breaker 1250A, 4 Pole Switch, Legrand Modular Switch
Technical Specifications
- Rated operating voltage: 220-690 V AC
- Rated permanent current: 1250 A
- Rated short-time withstand current (lcw): 24 kA
- Conditioned rated short-circuit current (Iq): 15 kA
- Number of poles: 4
- Number of auxiliary contacts: 3 change-over contacts
- Motor drive optional, voltage release optional
- Device construction: Built-in fixed built-in technique
- Suitable for floor mounting and distribution board installation
- Colour control element: Grey
- Type of control element: Wing knob
- Degree of protection (IP), front side: IP30
- Dimensions (H x L x W): 400mm x 200mm x 300mm
- Weight: 15 kg
Key Features
- Trip-free switches for on-load circuit breaking and isolation
- Conforms to IEC 60947-3
- Category of use AC 23 A
- Rated permanent current: 1250 A
- Rated short-time withstand current: 24 kA
- Rated operation power at AC-23, 400 V: 500 kW
- 4 poles with 3 auxiliary contacts as change-over contact
- Screw connection for main circuit
- IP30 degree of protection on front side
- Interlockable with wing knob control element
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Low voltage electrical circuit protection and isolation
- Main switch, maintenance/service switch, safety switch, emergency stop installation
- Suitable for floor mounting and distribution board installation
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical safety reducing risk of faults and electrical fires
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand DPX³-I 1600 trip-free switch 4P 1250A is available for immediate purchase, ideal for industrial and commercial low voltage electrical installations.
