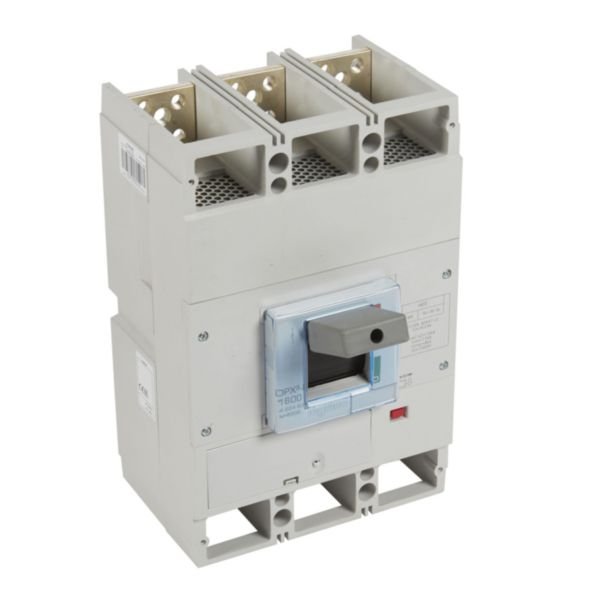

DPX³-I 1600 Trip-Free Switch | 630A Rated Current | 3 Poles | IP30 Protection | @EA of 1 | by Legrand
The DPX³-I 1600 trip-free switch is designed for low voltage electrical circuit protection and isolation, featuring a robust 630A rated current and 3 poles with auxiliary contacts. Ideal for industrial and commercial installations, this switch ensures safety and reliability with its IP30 protection and interlockable wing knob control. Perfect for maintenance and service applications, it supports efficient electrical system management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DPX³-I 1600 Trip-Free Switch | 630A Rated Current | 3 Poles | IP30 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 422490
Alternatively Known As: Legrand DPX3-I 1600 Switch, Trip-Free Circuit Breaker 630A, 3 Pole Switch, Low Voltage Switch
Technical Specifications
- Rated permanent current (Iu): 630 A
- Rated operation voltage (Ue): 220-690 V AC
- Rated short-time withstand current (lcw): 10 kA
- Conditioned rated short-circuit current (Iq): 7.6 kA
- Rated operation power at AC-23, 400 V: 252 kW
- Number of poles: 3
- Number of auxiliary contacts as change-over contact: 3
- Degree of protection (IP), front side: IP30
- Type of control element: Wing knob
- Type of electrical connection of main circuit: Screw connection
- Device construction: Built-in fixed built-in technique
- Suitable for floor mounting and distribution board installation
- Interlockable: Yes
- Motor drive optional: Yes
- Voltage release optional: Yes
- Dimensions (H x L x W): 400mm x 200mm x 300mm
- Weight: 15 kg
Key Features
- Trip-free switches for on-load circuit breaking and isolation
- Rated permanent current: 630 A
- Rated operation voltage: 220-690 V AC
- Category of use AC 23 A
- 3 poles with 3 auxiliary change-over contacts
- Interlockable with wing knob control element
- Screw connection for main circuit
- IP30 degree of protection on front side
- Suitable for floor mounting and distribution board installation
- Optional motor drive and voltage release available
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Low voltage electrical circuit protection and isolation
- Main switch for industrial and commercial electrical installations
- Maintenance and service switch applications
- Safety switch and emergency stop installations
- Floor mounting in switchboards and power cabinets
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enhances electrical safety reducing risk of faults and electrical fires
- Supports energy-efficient electrical system management by reliable circuit isolation
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand DPX³-I 1600 trip-free switch 3P 630A is available for immediate purchase, ideal for industrial and commercial low voltage electrical installations.
