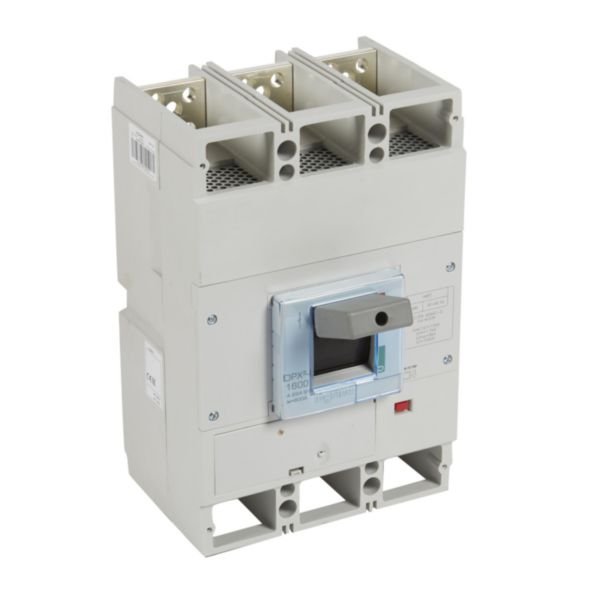

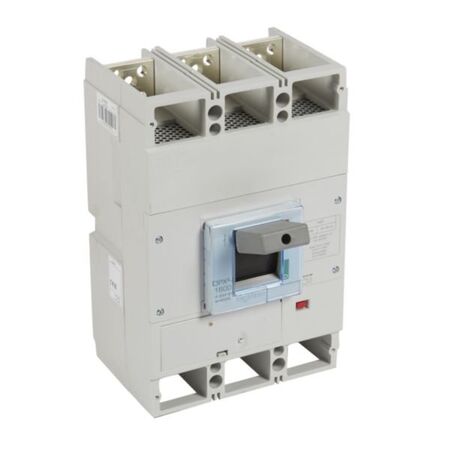

DPX³-I 1600 Trip-Free Switch | 800 A Rated Current | 3 Poles | IP30 Protection | @EA of 1 | by Legrand
The DPX³-I 1600 trip-free switch is designed for safe on-load circuit breaking and isolation, featuring a robust 800 A rated current and three poles. Ideal for industrial and commercial electrical distribution systems, it ensures compliance with IEC 60947-3 standards and offers IP30 protection. With options for motor drive and voltage release, this switch is perfect for maintenance and emergency stop installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DPX³-I 1600 Trip-Free Switch | 800 A Rated Current | 3 Poles | IP30 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 422491
Alternatively Known As: Legrand DPX3-I 800A Load Break Switch, DPX3-I Trip-Free Switch 3P 800A, Legrand Modular Switch 800A
Technical Specifications
- Rated current (In): 800 A
- Number of poles: 3
- Rated operating voltage: 220-690 V AC
- Rated short-time withstand current (lcw): 10 kA
- Rated operation power at AC-23, 400 V: 320 kW
- Conditioned rated short-circuit current (Iq): 10 kA
- Number of auxiliary contacts as change-over contact: 3
- Degree of protection (IP) front side: IP30
- Type of control element: Wing knob
- Device construction: Built-in fixed built-in technique
- Connection type: Screw connection
- Suitable for floor mounting and distribution board installation
- Interlockable: Yes
- Motor drive optional: Yes
- Voltage release optional: Yes
- Dimensions (H x L x W): 400mm x 250mm x 300mm
- Weight: 15 kg
Key Features
- Trip-free switch design for safe on-load circuit breaking and isolation
- Rated current: 800 A with 3 poles
- Conforms to IEC 60947-3 standards
- Category of use AC 23 A
- Can be associated with earth leakage modules and residual current relays
- Screw connection for main circuit
- IP30 degree of protection on front side
- Interlockable with wing knob control element
- Suitable for floor and distribution board mounting
- Optional motor drive and voltage release available
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical distribution system.
Applications
- Industrial electrical distribution systems
- Commercial power distribution boards
- Load break switching and isolation in low voltage circuits
- Maintenance and emergency stop installations
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables safe and efficient electrical circuit management reducing risk of electrical faults
- Supports integration with earth leakage and residual current devices enhancing safety and reducing electrical hazards
Warranty Information
Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand DPX³-I 1600 trip-free switch 3P 800A is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
