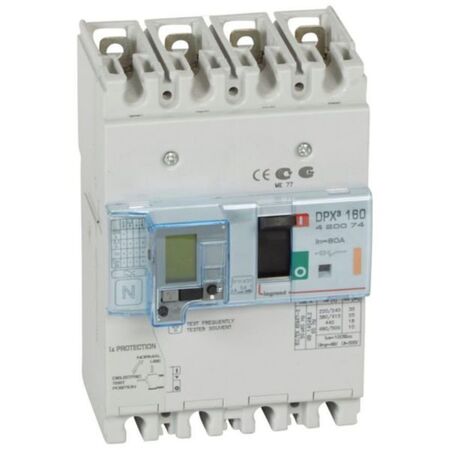

DPX³160 Thermal Magnetic Circuit Breaker | 4 Poles 80A | 25kA Breaking Capacity | Earth Leakage Module | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 420074
$3,346.00 List price: $4,169.60
+ −
30 Days Return Delivery Options
The DPX³160 thermal magnetic release circuit breaker is designed for robust electrical protection, featuring a 25kA breaking capacity and an integrated earth leakage module. Ideal for commercial and industrial applications, this 4-pole, 80A breaker ensures safety and compliance with electrical standards, making it perfect for switchboards and power cabinets.

Product Name/Title: DPX³160 Thermal Magnetic Circuit Breaker | 4 Poles 80A | 25kA Breaking Capacity | Earth Leakage Module | @EA of 1 | by Legrand

Brand: Legrand

SKU: 420074

Alternatively Known As: MCCB DPX3160 4P 80A, Legrand DPX 160 Earth Leakage Circuit Breaker, Thermal Magnetic Circuit Breaker with RCD

Technical Specifications
  • Rated permanent current (Iu): 80 A
  • Rated voltage: 220-690 V
  • Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 25 kA
  • Overload release current setting: 64-80 A
  • Adjustment range short-term delayed short-circuit release: 800-800 A
  • Adjustment range undelayed short-circuit release: 800-800 A
  • Device construction: Built-in fixed technique
  • Integrated earth fault protection: Yes
  • Type of electrical connection: Screw connection
  • Suitable for DIN rail mounting: Yes
  • Number of auxiliary contacts (normally closed): 1
  • Number of auxiliary contacts (change-over): 1
  • Switched-off indicator: Yes
  • Integrated undervoltage release: Yes
  • Number of poles: 4
  • Position of connection for main current circuit: Front side
  • Type of control element: Wing knob
  • Complete device with protection unit: Yes
  • Motor drive integrated: No
  • Motor drive optional: Yes
  • Degree of protection (IP): IP30
  • Dimensions (H x L x W): 160mm x 110mm x 140mm
  • Weight: 3.5 kg
Key Features
  • Thermal magnetic release circuit breaker with earth leakage module
  • 4 poles, rated current 80A
  • Breaking capacity of 25kA at 400V, compliant with EN/IEC 60947-2 and NEMA AB-1
  • Rated insulation voltage 500V and impulse withstand voltage 6kV
  • Thermal protection adjustable from 0.8 to 1.0 of rated current
  • Magnetic protection fixed at 10 times rated current (minimum 400A)
  • Equipped with LCD screen for earth leakage module with adjustable sensitivity and tripping
  • Screw connection for main circuit, suitable for DIN rail mounting
  • Includes auxiliary contacts, undervoltage release, switched-off indicator, and locking accessories
  • Can be motor operated or manually operated with rotary handle
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards or power cabinets.
Applications
  • Protection and control of low voltage electrical circuits in commercial and industrial installations
  • Switchboards and power cabinets requiring earth leakage protection
  • Installation in XL³ or XL³ S cabinets and enclosures
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Protects electrical installations from damage, reducing risk of fire and electrical faults
  • Adjustable earth leakage protection enhances safety and reduces energy waste
  • Durable design extends product life, minimizing replacement frequency and waste
Warranty Information

Standard Legrand warranty applies, typically 1 to 3 years depending on region and purchase terms.

Available Now

The Legrand DPX³160 thermal magnetic release circuit breaker with earth leakage module is available for immediate purchase, ideal for commercial and industrial electrical protection applications.
