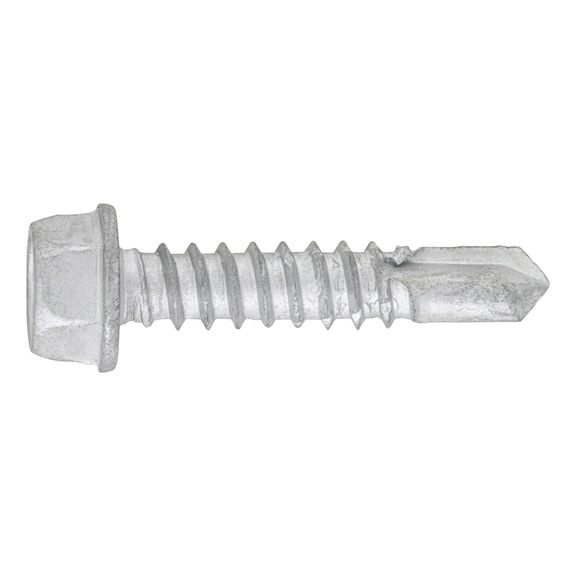

Drilling Screw Hexagon Head A2 Stainless Steel | Drill Tip & Moulded Thread | 50 PCS | by Wurth
The piasta® drilling screw features a hexagon head and is made from A2 stainless steel, designed with a drill tip and moulded thread for efficient fastening. Ideal for attaching metal profiles to steel or aluminum substructures, this screw reduces assembly time by at least 50% and allows for drilling without center punching, making it perfect for construction and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Drilling Screw Hexagon Head A2 Stainless Steel | Drill Tip & Moulded Thread | 50 PCS | by Wurth
Brand: Wurth
SKU: 214814232
Alternatively Known As: Self-drilling screw, Hex head drilling screw, Metal drilling screw, Bimetal screw, Hexagon head screw
Technical Specifications
- Material: Bimetal
- Surface: Flake zinc
- RoHS-compliant: Yes
- Head type: Hexagon head with collar
- Drive type: Hexagon (WS7)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground: Steel, Aluminum
- Nominal diameter: 4.2 mm
- Length: 32 mm
- Head diameter: 8.8 mm
- Head height: 4 mm
- Drill tip length: 5.0 mm
- Screw-thread length with drill tip: 29 mm
- Max. material thickness to be drilled through (metal): 3.0 mm
- Max. substructure thickness: 2.0 mm
- Min./max. attachment thickness: 1.5-17.0 mm
- Approval: ETA-10/0184
- Recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 32mm x 32mm x 8.8mm
- Weight: 0.05 kg
Key Features
- Reduction of assembly time by at least 50% using drill bit tip
- Drilling without centre punching
- Thread moulding and securing all in one operation
- Suitable for component combinations according to approval ETA-10/0184
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with structural standards.
Applications
- Attaching metal profiles to metal substructures made of steel or aluminium
- Suitable for component combinations steel/steel, aluminium/steel, aluminium/aluminium
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth piasta® drilling screw hexagon head A2 stainless steel with drill tip 50 PCS is available for immediate purchase. Ideal for metal profile attachment in construction and industrial applications.
