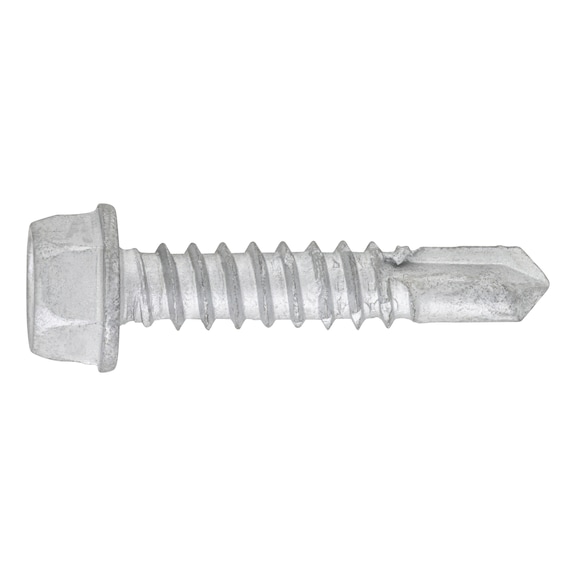

Drilling Screw Hexagon Head A2 Stainless Steel | Drill Tip & Moulded Thread | 50 PCS | by Wurth
The piasta® drilling screw features a hexagon head and is made from A2 stainless steel, designed with a drill tip and moulded thread for efficient fastening. Ideal for attaching metal profiles to steel or aluminum substructures, this screw reduces assembly time by at least 50% and allows for drilling without center punching, making it perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Drilling Screw Hexagon Head A2 Stainless Steel | Drill Tip & Moulded Thread | 50 PCS | by Wurth
Brand: Wurth
SKU: 214814250
Alternatively Known As: Self-drilling screw, Hex head drilling screw, Metal profile screw, Stainless steel drilling screw
Technical Specifications
- Material: Bimetal
- Surface: Flake zinc
- RoHS-compliant: Yes
- Head type: Hexagon head with collar
- Drive type: Hexagon (WS7)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground: Steel, Aluminum
- Nominal diameter: 4.2 mm
- Length: 50 mm
- Head diameter: 8.8 mm
- Head height: 4 mm
- Drill tip length: 5.0 mm
- Screw-thread length with drill tip: 38 mm
- Max. material thickness to be drilled through (metal): 3.0 mm
- Max. substructure thickness: 2.0 mm
- Min./max. attachment thickness: 14.0-35.0 mm
- Approval: ETA-10/0184
- Recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 4mm x 50mm x 8.8mm
- Weight: 0.05 kg
Key Features
- Reduction of assembly time by at least 50% using drill bit tip
- Drilling without centre punching
- Thread moulding and securing all in one operation
- Hexagon head with collar and hexagon drive
- Self-tapping screw thread with drilling tip
- Approved according to ETA-10/0184
Professional Installation Requirements
- Installation by a professional or experienced technician is recommended to ensure proper fastening and compliance with safety standards.
Applications
- Attaching metal profiles to metal substructures made of steel or aluminium
- Suitable for component combinations steel/steel, aluminium/steel, aluminium/aluminium
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for metal construction and assembly applications.
