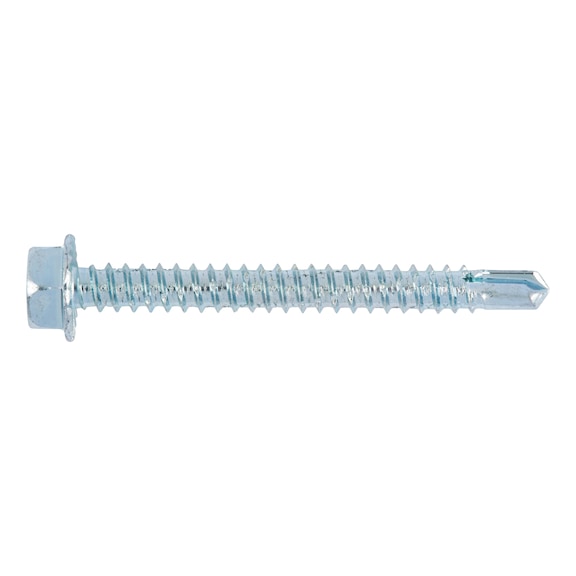

Drilling Screw with Hexagon Head | Case-Hardened Steel | Zinc-Plated & Blue Passivated | @Pack of 50 | by Wurth
Drilling screw with hexagon head and drill tip, made from case-hardened steel and featuring a durable zinc-plated, blue passivated surface. Ideal for attaching steel profiles to substructures up to 5 mm thick, this screw reduces assembly time by 50% and ensures secure fastening without the need for center punching. Perfect for construction and industrial applications, it complies with AS/NZS 1170 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Drilling Screw with Hexagon Head | Case-Hardened Steel | Zinc-Plated & Blue Passivated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 2143595
Alternatively Known As: Self-drilling screw, Hex head drilling screw, Zinc-plated metal screw, Steel profile screw, Blue passivated screw
Technical Specifications
- Dimensions (H x L x W): 3.45mm x 9.5mm x 8.3mm
- Weight: 0.02 kg
Key Features
- Case-hardened steel with zinc-plated, blue passivated surface
- Hexagon head with hexagon drive for secure fastening
- Drill tip reduces assembly time by at least 50%, enabling drilling without centre punching
- Thread moulding and securing all in one operation
- Suitable for max. material thickness to be drilled through of 2.5 mm
- Recommended installation speed between 1700-2500 rpm
- Must be processed with suitable drill driver; impact screwdrivers not permitted
- Must be attached perpendicular to the surface
Professional Installation Requirements
- Installation requires a suitable drill driver with depth stop; impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface for optimal performance.
Applications
- Attaching steel profiles to steel substructures up to 5 mm thickness
- Suitable for component combinations tI/tII according to approval ETA-10/0184
- Steel to steel connections with diameter 4.2 mm to 6.3 mm
- Use in dry environments where dampness is not expected
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances
- Durable zinc plating extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth pias® drilling screws with hexagon head and drill tip are available for immediate purchase, ideal for steel profile fastening in construction and industrial applications.
