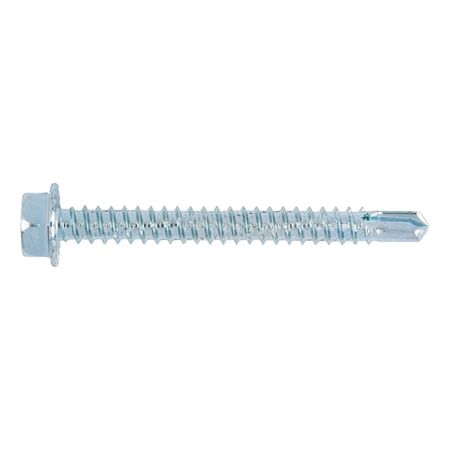

Drilling Screw with Hexagon Head | Case-Hardened Steel | Zinc-Plated & Blue Passivated | @Pack of 50 | by Wurth
The pias® drilling screw with hexagon head is crafted from case-hardened steel and features a zinc-plated, blue passivated finish. Designed for efficient metal fastening, this screw reduces assembly time by 50% with its drill tip, making it ideal for attaching steel profiles to substructures. Perfect for professionals, it ensures secure connections in steel/steel applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Drilling Screw with Hexagon Head | Case-Hardened Steel | Zinc-Plated & Blue Passivated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 2144222
Alternatively Known As: Self-drilling screw, Hex head drilling screw, Zinc-plated metal screw, Steel profile screw, Blue passivated drilling screw
Technical Specifications
- Dimensions (H x L x W): 4.3mm x 22mm x 8.8mm
- Weight: 0.02 kg
Key Features
- Case-hardened steel with zinc plating and blue passivation
- Hexagon head with WS7 external drive
- Drill tip reduces assembly time by at least 50%, enabling drilling without centre punching
- Thread moulding and securing in one operation
- Suitable for max. material thickness to be drilled through of 3.0 mm
- Min./max. attachment thickness from 1.5 mm to 14.5 mm
- Approved under ETA-10/0184
- Recommended installation speed between 1700-2500 rpm
- Zinc-plated screws suitable only where dampness is not expected
Professional Installation Requirements
- Use a suitable drill driver with depth stop; impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface.
Applications
- Attaching steel profiles to steel substructures up to 5 mm thickness
- Suitable for component combinations tI/tII according to approval ETA-10/0184
- Use in steel/steel connections with diameters 4.2 mm to 6.3 mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
Available for immediate purchase, ideal for steel construction and metal fastening applications.
