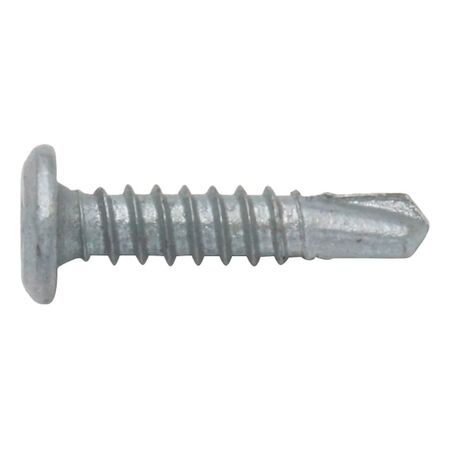

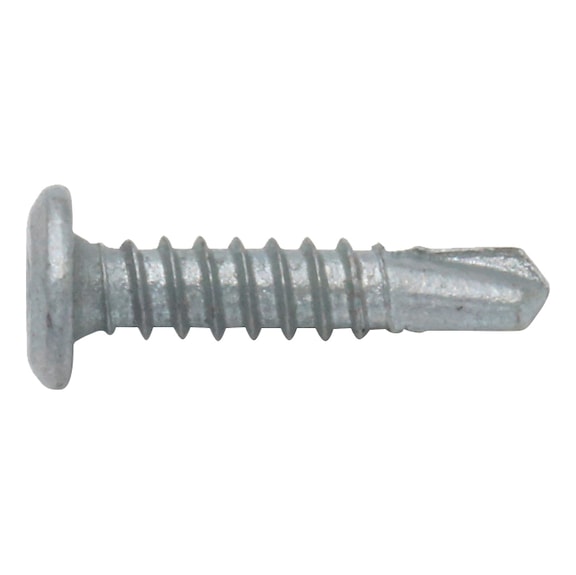

Drilling Screws with Low Profile Wafer Head | Self-Drilling Tip | HDG Coating | @Pack of 100 | by Wurth
Drilling screws with a low profile wafer head are perfect for fastening light to medium materials without the need for pre-drilling. Featuring a self-drilling tip and Class 3 hot dip galvanised (HDG) coating, these screws ensure durability and corrosion resistance. Ideal for both indoor and outdoor applications, they are designed for use in tight spaces where low height tolerances are required.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Drilling Screws with Low Profile Wafer Head | Self-Drilling Tip | HDG Coating | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 3665503316
Alternatively Known As: Self-drilling wafer head screws, low profile drilling screws, HDG self-tapping screws
Technical Specifications
- Material: Steel
- Surface: Class 3 hot dip galvanised (HDG)
- Nominal diameter: 4.8 mm
- Length: 16 mm
- Head diameter: 9.5 mm
- Head height: 2.5 mm
- Drill tip length: 5.0 mm
- Internal drive: H2
- Head type: Wafer head
- Thread type: Self-tapping screw thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 16mm x 9.5mm
- Weight: 0.05 kg
Key Features
- Low-profile wafer head for almost flush finish
- Self-drilling tip eliminates need for pre-drilling
- Class 3 hot dip galvanised (HDG) corrosion resistant coating
- Suitable for use where low height tolerances or clearances are needed
- Available with Phillips or Square drive types
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and safety.
Applications
- Light to medium materials fastening
- Indoor and outdoor use
- Steel fastening without pre-drilling
Standards & Compliance
- Complies with AS 3566.1 Steel, CL3
Environmental Benefits
- Corrosion resistant coating extends product life reducing waste
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Wurth offers standard manufacturer warranty covering defects in materials and workmanship.
Available Now
Wurth Drilling Screws with Low Profile Wafer Head 100 PCS are available for immediate purchase, ideal for fastening light to medium materials in both indoor and outdoor applications.
