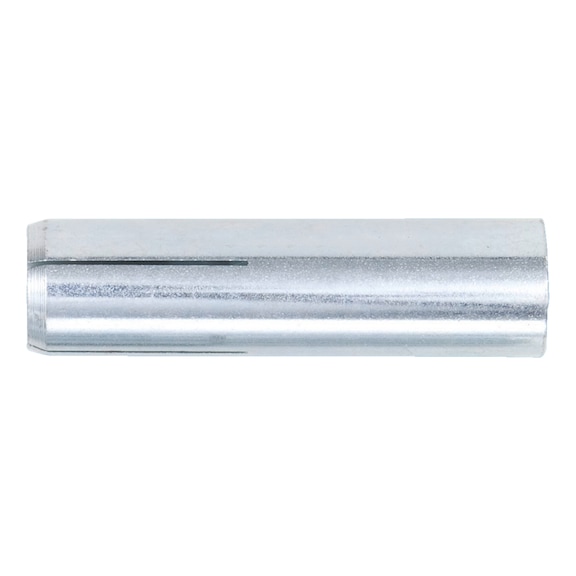

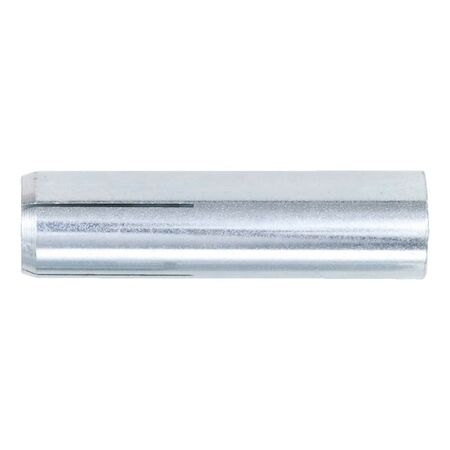

Drop In Anchor DW15 | Zinc Plated Steel | Female Thread Design | High Load Capacity | @Pack of 25 | by Wurth
Drop In Anchor DW15 is designed for secure anchoring in concrete, featuring a female thread design and zinc-plated steel for corrosion resistance. Ideal for construction and industrial applications, this anchor offers high load capacity and quick installation with minimal drill hole depth, ensuring reliable performance in non-cracked concrete.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor diameter: 15 mm
- Anchor length: 80 mm
- Thread type x anchor diameter: DW15
- Material: Steel
- Surface: Zinc plated
- Nominal drill-bit diameter: 22 mm
- Drill hole depth: 85 mm
- Dimensions (H x L x W): 80mm x 80mm x 15mm
- Weight: 0.2 kg
Key Features
- Female thread anchor with metric thread for concrete anchoring
- Zinc-plated steel construction for corrosion resistance
- Quick, cost-effective installation with small drill hole depth
- High load-bearing capacity in non-cracked concrete
- Cotter pin installation type for immediate load-bearing capacity
- Attached part can be easily removed and re-anchored
- Special solid outer wall prevents breaking out of anchoring base
- Thread resistant to soiling
Professional Installation Requirements
- Installation should be performed by a qualified professional using the specified torque and manual expander tool for secure anchoring.
Applications
- Anchoring in concrete for construction and industrial use
- Suitable for use with fastening screws or threaded rods
- Ideal for secure mounting in non-cracked concrete
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Drop In Anchor W ED ANC W ED S A2K DW15 25 PCS is available for immediate purchase, ideal for construction and industrial concrete anchoring applications.
