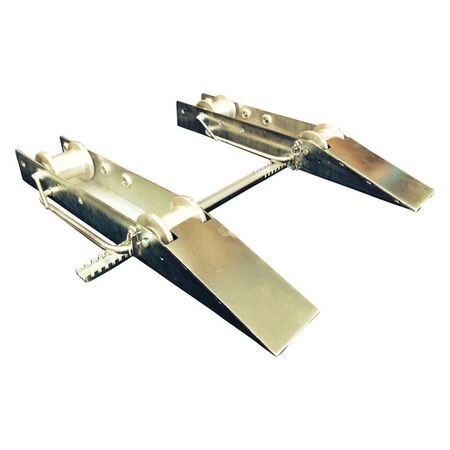

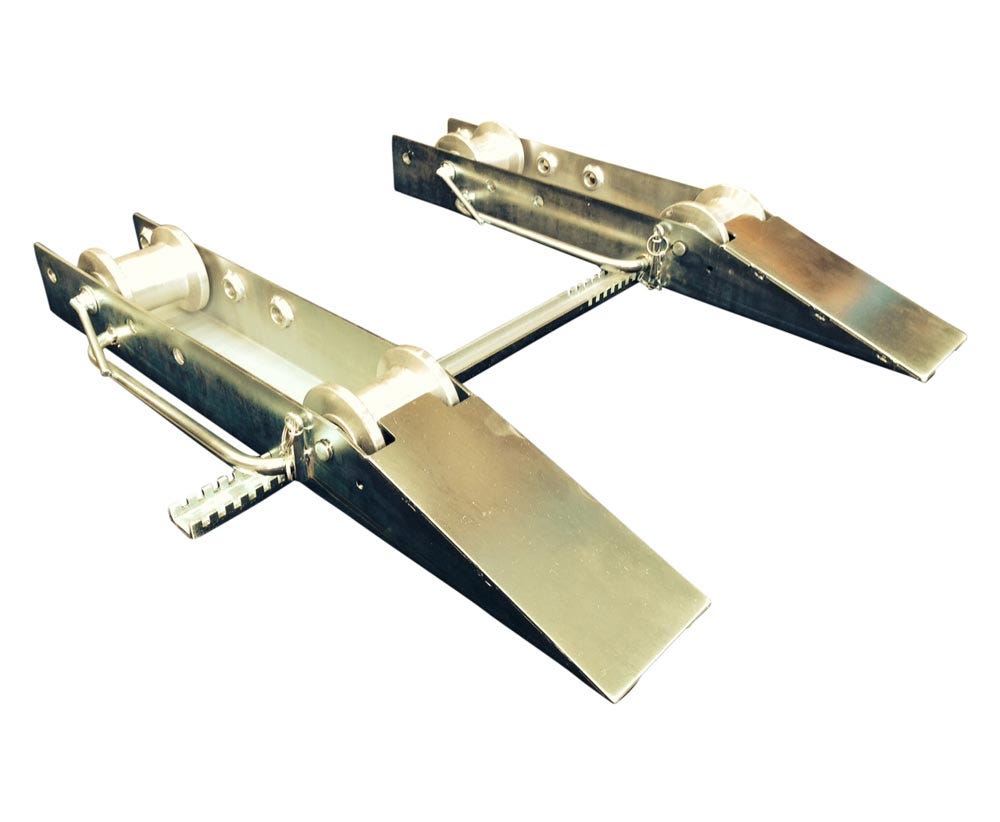

Drum Ramp Roller Set | 1000kg Capacity | Adjustable for 400-1200mm Drums | Galvanised Steel & Aluminium | @EA of 1 | by Cabac
The Drum Ramp Roller Set is designed for efficient cable drum handling, supporting a maximum weight of 1000kg and accommodating drum diameters from 400 to 1200mm. Built with a durable galvanised steel frame and aluminium rollers, it ensures safe and easy transport on industrial and construction sites, making it ideal for cable installation and positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Maximum drum weight capacity: 1000kg
- Suitable drum outer diameter: 400-1200mm
- Maximum drum width using guide bar: 900mm
- Material: Galvanised steel frame with aluminium rollers
- Dimensions (H x L x W): 130mm x 950mm x 150mm
- Weight: 15.5 kg
Key Features
- 1000kg drum capacity
- Adjustable roller positioning to fit drum diameters from 400 to 1200mm
- Galvanised steel framework with aluminium rollers
- Quick and safe roller positioning system
- Loading ramps designed with minimum angle of inclination for safe loading
- Frame includes handle for easy transport and positioning
- Comes with galvanised steel guide bar to maintain drum rail position
Professional Installation Requirements
- No professional installation required; however, proper training on safe handling and operation is recommended.
Applications
- Cable installation and handling
- Transport and positioning of cable drums
- Industrial and construction sites requiring cable drum movement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable galvanised steel and aluminium construction ensures long product life reducing waste
- Facilitates safe handling reducing risk of damage to cables and equipment
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac Drum Ramp Roller Set 1T 40-120cm is available for immediate purchase, ideal for cable installation and industrial handling applications.
