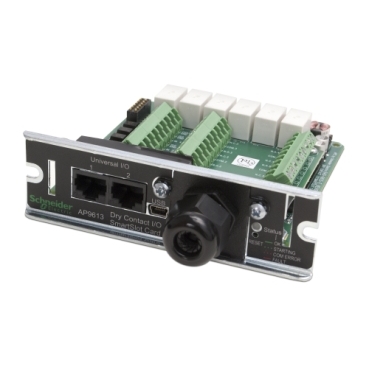

Dry Contact I/O SmartSlot Card | 6 Inputs & 2 Relay Outputs | Remote Monitoring | by Clipsal
The Dry Contact I/O SmartSlot Card is designed for seamless integration with UPS systems, featuring 6 dry contact inputs and 2 relay outputs. Ideal for data centers and industrial automation, it enables remote monitoring and control of UPS status, ensuring efficient power management. Easy to install via the SmartSlot interface, this card is perfect for professionals looking to enhance their power equipment's functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dry Contact I/O SmartSlot Card | 6 Inputs & 2 Relay Outputs | Remote Monitoring | by Clipsal
Brand: Clipsal
SKU: APCAP9613
Alternatively Known As: APC AP9613, Dry Contact I/O Card, UPS Dry Contact Card, SmartSlot Dry Contact Module, APCAP9613
Technical Specifications
- Interface: SmartSlot
- Inputs: 6 dry contact inputs
- Outputs: 2 relay outputs (dry contact)
- Input Voltage: 24V DC (typical for control signals)
- Operating Temperature: 0°C to 40°C
- Humidity: 0-95% non-condensing
- Compatible with select APC UPS models
- Dimensions (H x L x W): 25mm x 80mm x 120mm
- Weight: 0.2 kg
Key Features
- Provides dry contact input and output interface for UPS systems
- Enables remote monitoring and control of UPS status
- Supports integration with building management and automation systems
- Easy installation via SmartSlot interface
- Configurable input and output signals for custom applications
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with UPS systems and SmartSlot accessories.
Applications
- Uninterruptible Power Supply (UPS) systems
- Data centers
- Server rooms
- Industrial automation
- Remote monitoring and control of power equipment
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Facilitates efficient power management and monitoring, reducing unnecessary energy consumption.
- Supports integration with automation systems for optimized energy use.
Warranty Information
2 years manufacturer's warranty.
Available Now
The Clipsal Dry Contact I/O SmartSlot Card APCAP9613 is available for immediate purchase. Ideal for UPS monitoring and integration in data centers, server rooms, and industrial environments.
