DSL-127SGM25E25KM0 | Connectors and cables

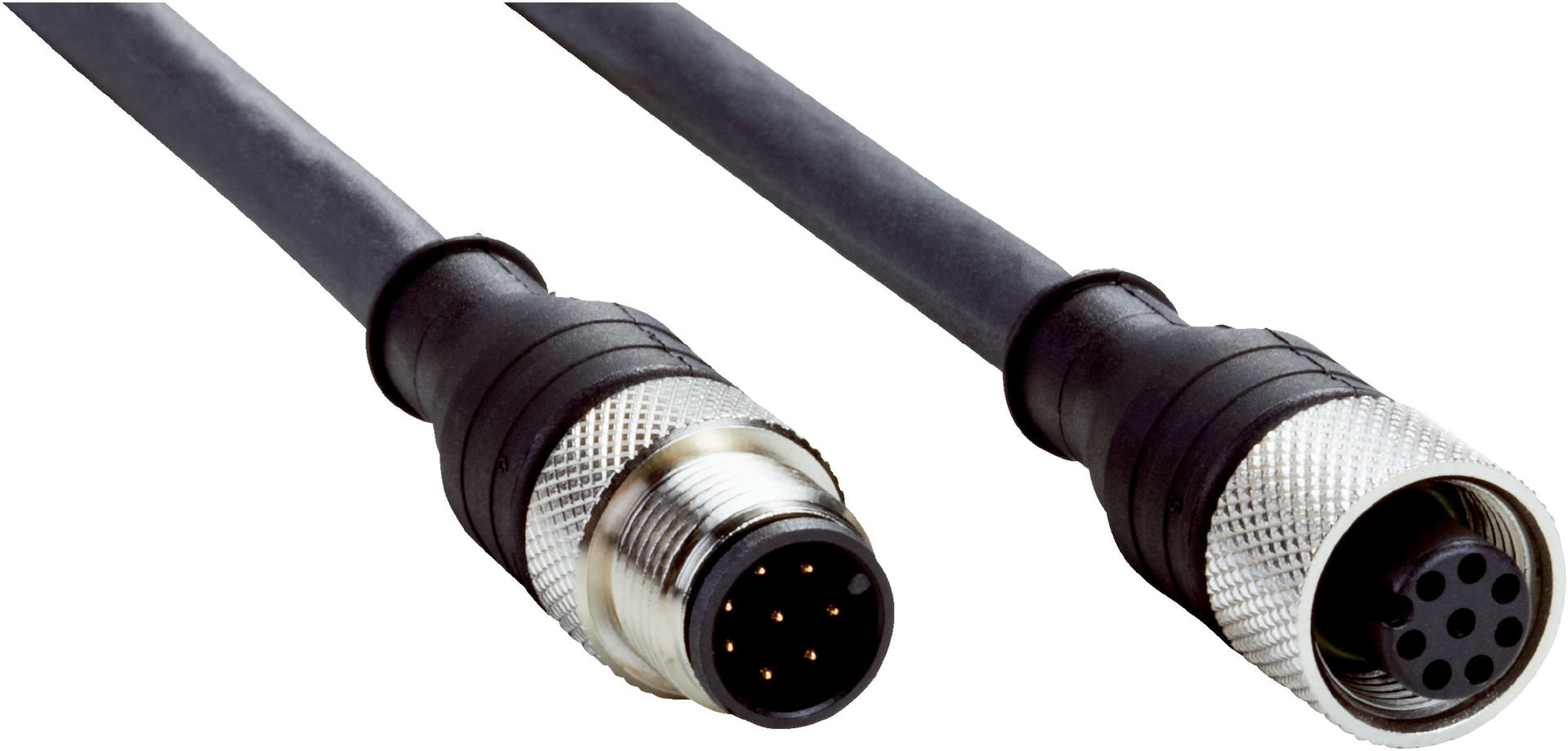

The SICK DSL-127SGM25E25KM0 is a high-quality sensor/actuator cable featuring M12 8-pin connectors, shielded halogen-free PUR cable, and robust construction for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DSL-127SGM25E25KM0 | Connectors and cables
Brand: SICK
SKU: 2076626
Alternatively Known As: M12 8-pin sensor cable, actuator cable M12 connector, shielded sensor cable, industrial automation cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Male connector, M12, 8-pin, straight
- Connector material: TPU
- Locking nut material: CuZn, nickel-plated brass
- Tightening torque: 0.5 Nm
- Cable length: 0.25 m
- Cable wires: 7-wire, 0.25 mm² conductor cross section
- Cable jacket: PUR, halogen-free, black
- Cable diameter: 6 mm
- Shielding: Shielded
- Bending radius flexible use: >10 x cable diameter
- Bending radius stationary position: >5 x cable diameter
- Operating temperature flexible use: -25°C to +80°C
- Operating temperature stationary position: -50°C to +80°C
- Drag chain operation temperature: -25°C to +60°C
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65/IP67 (EN 60529)
- UL recognized according to AWM Style 20549 and 10493
- Dimensions (H x L x W): 6mm x 250mm x 6mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 8-pin straight connectors
- Durable TPU connector material with nickel-plated brass locking nut
- Halogen-free PUR jacket cable with 7 wires and 0.25 mm² conductor cross section
- Shielded cable for interference protection
- High bending cycle durability (>2,000,000 cycles)
- IP65/IP67 rated for dust and water protection
- Operating temperature range from -50°C to +80°C depending on use
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor and actuator connections
- Machine building and factory automation
- Robotics and control systems requiring reliable signal transmission
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact during disposal
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DSL-127SGM25E25KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control system applications.
