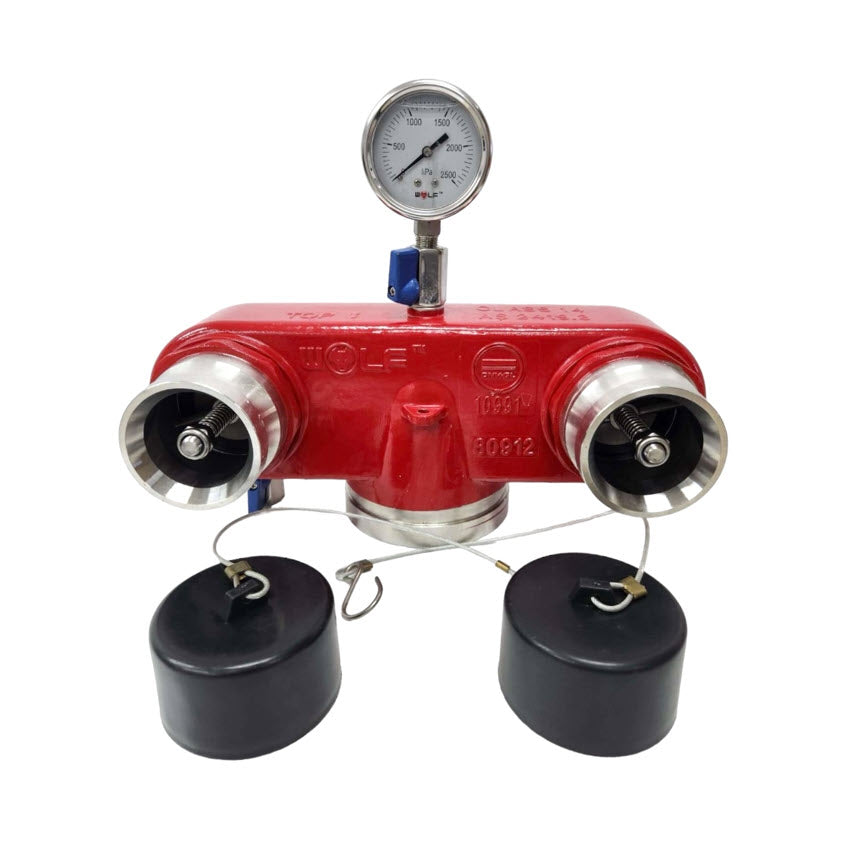

Dual Booster Valve-Bottom Outlet BI Assembly | 304 Stainless Steel | 2,100 kPa Working Pressure | Painted Red by Firebox

BRAND: Firebox
SKU: BVBOTTOMENTBI
$811.20 List price: $981.90
+
The Dual Booster Valve-Bottom Outlet BI assembly is constructed from durable 304 stainless steel and features a painted red finish for visibility. Ideal for fire protection systems in Northern Territory and Western Australia, it offers a high working pressure capacity of 2,100 kPa, ensuring reliable performance in industrial and commercial installations.

Product Name/Title: Dual Booster Valve-Bottom Outlet BI Assembly | 304 Stainless Steel | 2,100 kPa Working Pressure | Painted Red by Firebox

Brand: Firebox

SKU: BVBOTTOMENTBI

Alternatively Known As: Dual Booster Valve, Fire Booster Valve, Bottom Outlet Booster Valve

Technical Specifications
  • Material: 304 Stainless Steel
  • Finish: Painted red
  • Inlet Connection: 65mm BI
  • Working Pressure: 2,100 kPa
  • Maximum Working Pressure: 2,650 kPa
  • Onsite Test Pressure: 3,150 kPa
  • Unit Weight: 7.4 kg
  • Dimensions (H x L x W): 400mm x 200mm x 300mm
  • Weight: 7.4 kg
Key Features
  • Constructed from durable 304 stainless steel
  • Painted red finish for visibility and corrosion resistance
  • Designed for bottom outlet with 65mm BI inlet connection
  • High working pressure capacity of 2,100 kPa
  • Maximum working pressure of 2,650 kPa
  • Onsite test pressure rated at 3,150 kPa
Professional Installation Requirements
  • Installation should be performed by a qualified fire protection system technician to ensure compliance with local fire safety regulations.
Applications
  • Fire protection systems in Northern Territory and Western Australia
  • Industrial and commercial fire safety installations
Standards & Compliance
  • AS/NZS 2419 – Fire Hydrant Systems
Environmental Benefits
  • Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
Warranty Information

12 months warranty provided by the manufacturer.

Available Now

The Wolf Dual Booster Valve-Bottom Outlet BI Assembly is available for immediate purchase, ideal for fire protection system installations in NT and WA.
