Dual Booster Valve Rear Outlet Storz Assembly | 304 Stainless Steel | 2100 kPa Working Pressure | Red Finish by Firebox

BRAND: Firebox
SKU: BVBACKENTSTZ
$739.30 List price: $894.80
+

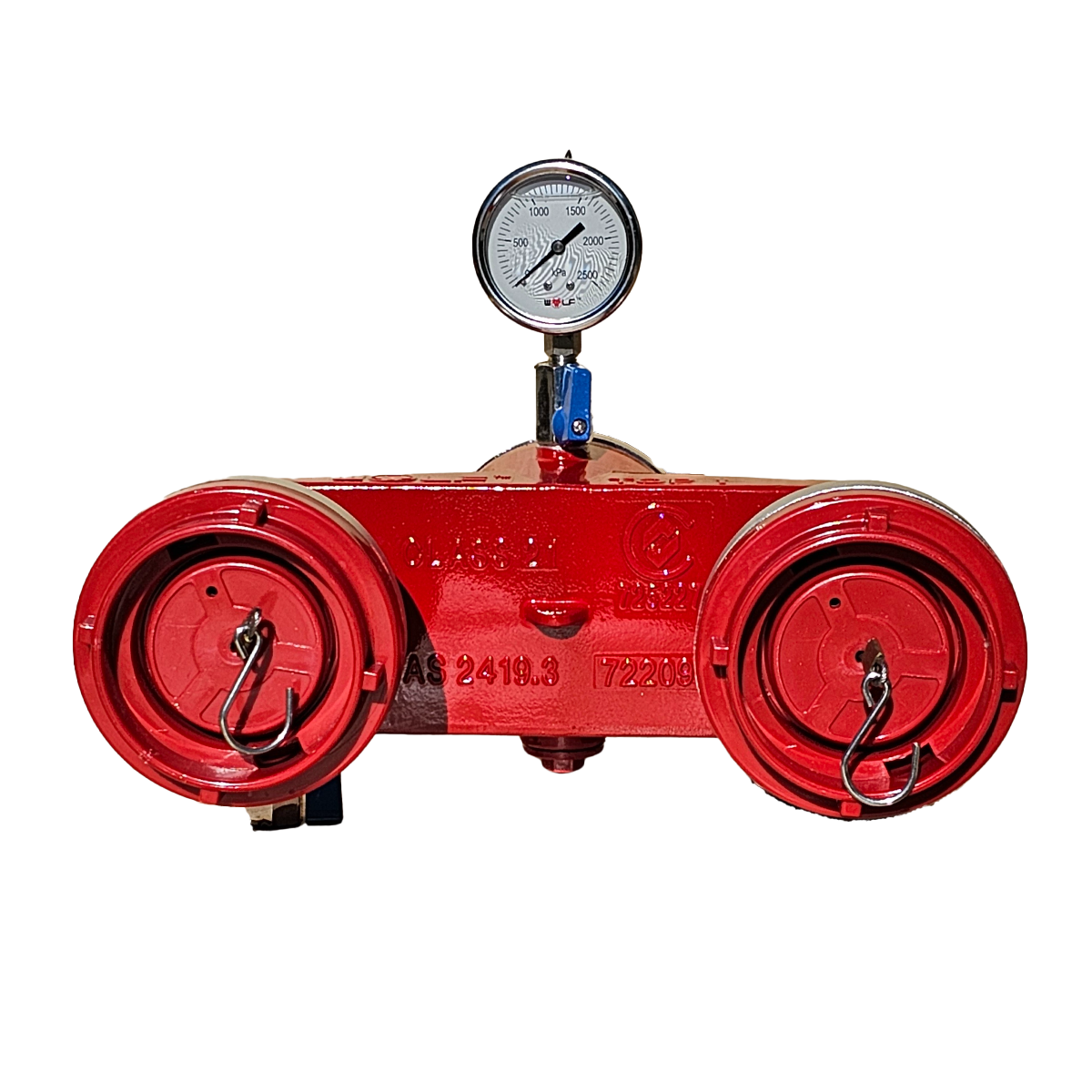

The Dual Booster Valve Rear Outlet Storz Assembly is constructed from durable 304 stainless steel and features a high-visibility red finish. Ideal for firefighting and fire protection systems in SA, VIC, TAS, and ACT, it offers a working pressure of 2,100 kPa and is designed for reliable performance in critical applications.

Product Name/Title: Dual Booster Valve Rear Outlet Storz Assembly | 304 Stainless Steel | 2100 kPa Working Pressure | Red Finish by Firebox

Brand: Firebox

SKU: BVBACKENTSTZ

Alternatively Known As: Dual Booster Valve, Rear Outlet Storz Valve, Fire Booster Valve Assembly, Stainless Steel Booster Valve

Technical Specifications
  • Material: 304 Stainless steel
  • Finish: Painted red
  • Inlet connection: 65mm Storz
  • Working pressure: 2,100 kPa
  • Maximum working pressure: 2,650 kPa
  • Onsite test pressure: 3,150 kPa
  • Unit weight: 7.2 kg
  • Dimensions (H x L x W): 150mm x 300mm x 200mm
  • Weight: 7.2 kg
Key Features
  • Constructed from durable 304 stainless steel
  • Painted red finish for high visibility
  • Inlet connection type: 65mm Storz
  • Working pressure of 2,100 kPa with maximum working pressure of 2,650 kPa
  • Onsite test pressure rated at 3,150 kPa
  • Certified with Global-Mark ID 109076
Professional Installation Requirements
  • Installation should be performed by qualified fire protection system professionals to ensure compliance with local regulations and standards.
Applications
  • Firefighting and fire protection systems in South Australia, Victoria, Tasmania, and Australian Capital Territory
  • Suitable for use in booster valve assemblies requiring rear outlet Storz connections
Standards & Compliance
  • AS/NZS 2419 – Fire Hydrant Systems
Environmental Benefits
  • Durable stainless steel construction reduces need for frequent replacements, minimizing waste
  • Painted finish extends product lifespan, reducing environmental impact
Warranty Information

12 months warranty provided by the manufacturer.

Available Now

The Wolf Dual Booster Valve-Rear Outlet Storz Assembly is available for immediate purchase, ideal for fire protection applications in SA, VIC, TAS, and ACT.
