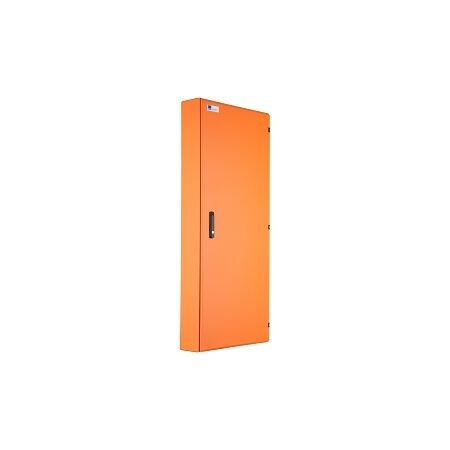

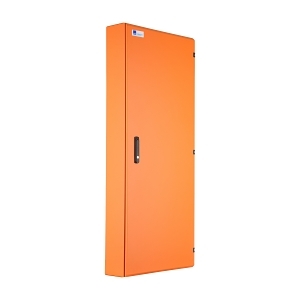

Dual Energy Meter Panelboard | 250A | 24/48 Way | Surface Mount | Orange by NHP
Dual energy meter panelboard with 250A capacity and 24/48 way configuration—ideal for industrial facilities and large buildings. Built for efficient energy management, with surface-mounted steel housing for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus P/board Metering 1512mm Dual Energy Meter Split DIN-T 24 48 Way 250A MSW Orange
Brand: NHP
SKU: CPLMD2448M250O
Alternatively Known As: Dual Energy Meter, Split DIN-T Meter, Concept Plus Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 72
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Impact Strength: IK10
- Degree of Protection: IP42
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1512mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- Integrated energy metering function for efficient energy management.
- Surface mounted design with a durable steel housing.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- General: Any location requiring robust electrical distribution and metering solutions
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Efficient energy metering helps in reducing energy waste and optimizing consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus P/board Metering is available now for immediate purchase, ideal for commercial and industrial applications.
