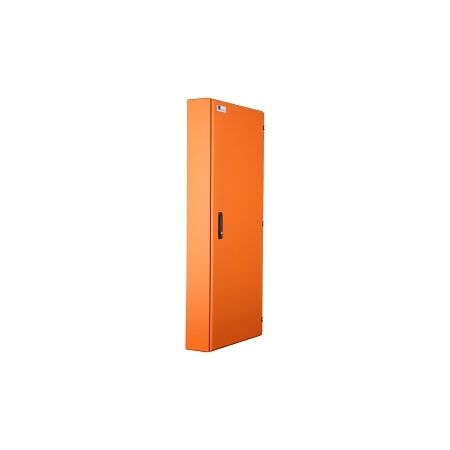

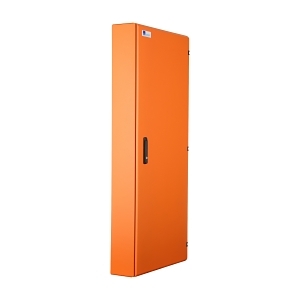

Dual Energy Meter Panelboard | 250A | 54 Way | IP42 Steel by NHP
Dual energy meter panelboard with 250A capacity and 54 outgoing ways—ideal for industrial facilities and large buildings. Built for efficient energy management, with robust IP42 steel housing and surface-mounted design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus P/board Metering 1512mm Dual Energy Meter Split DIN-T 30 54 Way 250A MSW Orange
Brand: NHP
SKU: CPLMD3054M250O
Alternatively Known As: Dual Energy Meter, Split DIN-T Meter, Concept Plus Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 84
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 14
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1512mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- Integrated energy metering function for efficient energy management.
- Robust steel housing with IP42 protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and energy management systems
- General: Any location requiring dual energy metering and distribution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Efficient energy management reduces overall energy consumption and carbon footprint.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus P/board Metering is available now for immediate purchase. Ideal for commercial and industrial applications.
