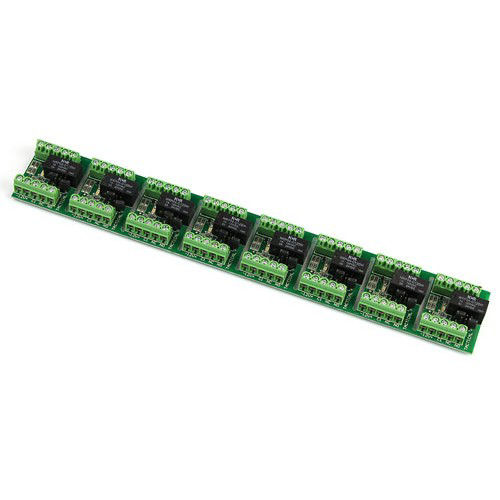

Dual Input Relay Board 12V DC 8 DPDT Relays Transistor Buffered Ness

BRAND: Ness
SKU: POW456
$372.30 List price: $496.40
+ −
30 Days Return Electricians Unlock Trade Access
Ness 12V DC dual input relay board features 8 DPDT relays and transistor buffering. Ideal for alarm and security installations.

Alternatively Known As: Ness POW456 Relay Board, 12V DPDT Relay Module, Dual Input Buffered Relay Board, Eight-Relay Security Relay Board

Technical Specifications
  • Input Voltage: 12–15V DC
  • Relay Configuration: Eight individual DPDT relays
  • Contact Rating: 1A at 30V DC per relay contact
  • Trigger Input: Positive 5–12V DC or 0V DC
  • Current Draw: 47mA when a relay is active
  • Power Distribution: Common power rail; supply connection required at the first relay
  • Relay Contacts: Voltage-free by default, with selectable positive or negative common-pole links
  • Status Indication: Onboard LED indication when a relay is triggered
  • Dimensions (H x L x W): 20mm x 275mm x 42mm
  • Weight: 0.2 kg
Key Features
  • Eight individual dual-buffered DPDT relays
  • Transistor-buffered inputs accommodate positive or negative trigger control
  • Common power rail simplifies multi-relay installation
  • Relay sections can be separated for individual or grouped applications
  • Selectable common-pole links allow positive or negative voltage switching
  • Designed and manufactured in Australia by Tactical Power Products
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security, electrical or controls technician. Follow applicable low-voltage wiring and manufacturer installation requirements, including AS/NZS 3000 where incorporated into a fixed electrical installation.
Applications
  • Security alarm and access-control systems
  • Security control panels and monitoring interfaces
  • Home automation and building-control systems
  • Lift and door-control applications
  • Industrial low-voltage relay switching
  • General 12V DC control and interface applications
Environmental Benefits
  • Low-voltage DC operation avoids direct mains connection at the relay board
  • Reusable multi-channel relay architecture can reduce the need for multiple separate interface modules
  • Durable relay construction may reduce replacement frequency and associated electronic waste
Warranty Information

Three years from date of purchase under Ness Corporation’s general warranty for Ness manufactured or supplied products, unless otherwise specified. Warranty claims are subject to Ness terms and conditions.

Available Now

Special-order product available through Ness branches and authorised Australian security distributors.
