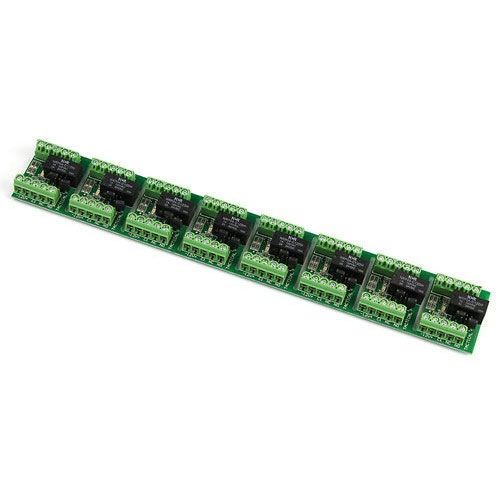

Dual Input Relay Board 24VDC 8 DPDT Relays Buffered Input Ness

BRAND: Ness
SKU: POW455
$410.60 List price: $547.50
+ −
30 Days Return Electricians Unlock Trade Access
Ness 24VDC dual input relay board features 8 DPDT relays and a buffered input. Ideal for alarm and security installations.

Alternatively Known As: 24V Relay Board, DPDT Relay Module, Dual Input Relay Board, Buffered Input Relay Board

Technical Specifications
  • Supply Voltage: 24VDC
  • Input Voltage Range: 5–24VDC
  • Relay Configuration: DPDT (double-pole double-throw)
  • Number of Relays: 8
  • Input Type: Transistor-buffered
  • Input Polarity: Common-positive DC input
  • Common Pole Link: Yes
  • Construction: Printed circuit relay control board
  • Dimensions (H x L x W): 100mm x 150mm x 200mm
  • Weight: 0.5 kg
Key Features
  • Eight individually buffered DPDT relays
  • Accepts common-positive 5–24VDC input signals
  • Dual input relay board configuration
  • Common power rail for simplified wiring
  • Suitable for alarm and security installation interfaces
  • Compact control and switching module
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security or electrical technician. Isolate the 24VDC supply before wiring and follow the control panel and relay load manufacturer's instructions.
Applications
  • Alarm system interfaces
  • Security system installations
  • Access control equipment
  • Automation and control panels
  • Low-voltage switching and signal isolation
  • Industrial and residential control systems
Environmental Benefits
  • Low-voltage DC operation supports energy-conscious control system design
  • Ness publishes RoHS compliance documentation for its product range, supporting restriction of hazardous substances
  • Durable relay-based control hardware can reduce replacement frequency and electronic waste
Warranty Information

3-year warranty from date of purchase for Ness manufactured or supplied products, subject to Ness warranty terms and exclusions.

Available Now

Available through Ness and authorised Australian security and electrical distributors.
