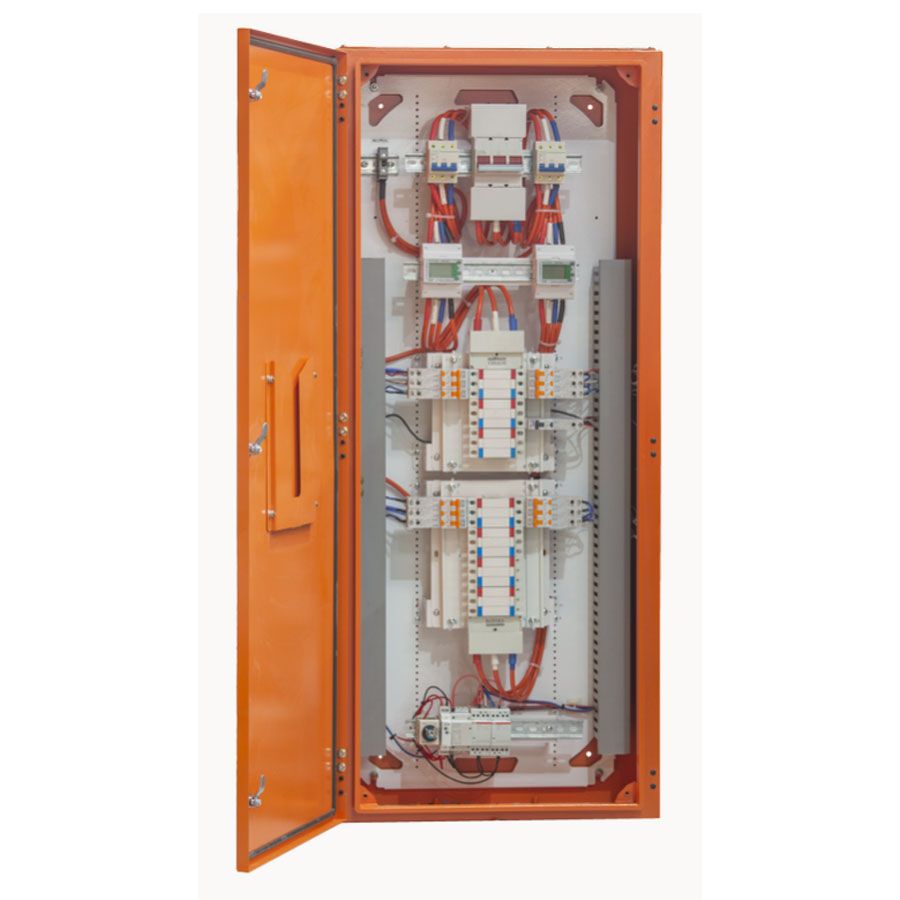

Dual Meter DB IP66 12/18P 250A 1000x600x200mm Orange Bovara
Bovara IP66 dual meter distribution board features light and power 2 chassis 12/18P, 250A isolator, auxiliary DIN rail, 1000H x 600W x 200D, X15 orange gloss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Dual Meter Switchboard, IP66 Electrical Distribution Board, 12/18 Pole Distribution Board, Bovara DBC2C1218M
Technical Specifications
- Product Code: DBC2C1218M
- Rated Current: 250A
- Rated Voltage: 230–415V
- Chassis Configuration: Two chassis, 12/18P
- Ingress Protection: IP66
- Material: Zincanneal steel
- Finish: X15 orange gloss powder coating
- Door Type: Internal side-hinged door with keylock
- Mounting Method: Wall mounted
- Cable Entry: Top and bottom entry provisions
- Included Components: Earth and neutral bars
- Auxiliary Equipment: Auxiliary DIN rail provision
- Dimensions (H x L x W): 1000mm x 600mm x 200mm
- Weight: 35 kg
Key Features
- Dual meter configuration for separate light and power supplies
- Two 12/18P chassis for circuit protection and distribution equipment
- 250A isolator included
- IP66 enclosure for protection against dust and high-pressure water ingress
- Zincanneal steel construction with durable orange powder-coated finish
- Internal side-hinged, key-lockable door
- Top and bottom cable entry provisions
- Earth and neutral bars included
- Auxiliary DIN rail for control or metering accessories
Professional Installation Requirements
- Installation, meter connection and electrical fit-out must be completed by a licensed electrician in accordance with AS/NZS 3000, local supply authority requirements and the manufacturer's instructions. The completed assembly must be appropriately designed, tested and verified to the applicable AS/NZS 61439 requirements.
Applications
- Dual residential electricity metering
- Commercial light and power distribution
- Industrial and infrastructure electrical installations
- Outdoor or exposed distribution locations requiring IP66 protection
- Metering and circuit protection assemblies
Standards & Compliance
- AS/NZS 61439 series for low-voltage switchgear and controlgear assemblies, subject to verification of the completed configuration
- AS/NZS 3000 for electrical installation and switchboard installation requirements
- AS 60529 for verification of the IP66 enclosure rating
Environmental Benefits
- Zincanneal steel enclosure components are recyclable at end of service life
- Durable powder-coated steel construction can extend service life and reduce replacement waste
- Modular chassis and serviceable components support repair, maintenance and reconfiguration
Warranty Information
Bovara-specific warranty duration was not located in the published product information. Confirm warranty terms, exclusions and claim requirements with Bovara or the authorised distributor; Australian Consumer Law rights apply.
Available Now
Available through authorised Bovara distributors in Australia.
