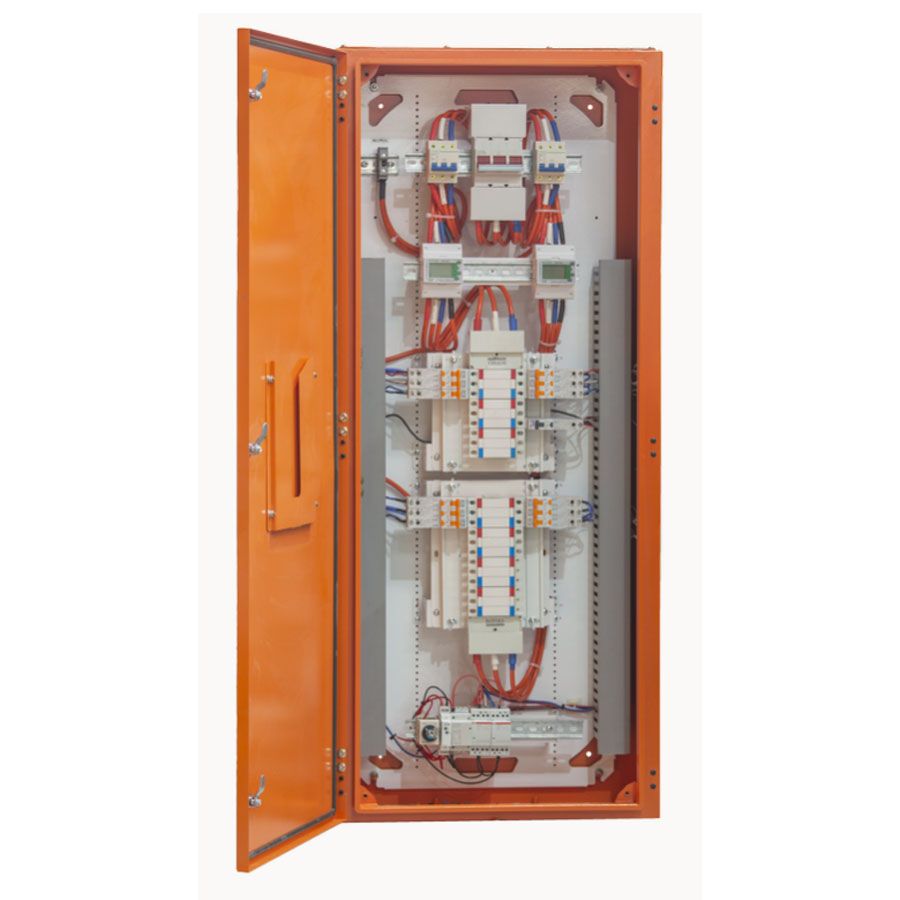

Dual Meter DB IP66 18/24P 250A 1200x600x200mm Orange Bovara
Bovara IP66 dual meter distribution board features light and power 2 chassis 18/24P, 250A isolator, auxiliary DIN rail, 1200H x 600W x 200D, X15 orange gloss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Dual Meter DB, IP66 Distribution Board, Dual Chassis Meter Board, Light and Power Distribution Board
Technical Specifications
- Rated Current: 250 A
- Rated Voltage: 230–415 V AC
- Pole Capacity: 18/24 pole
- Configuration: Dual meter with separate light and power chassis
- Main Isolator: 250 A
- Ingress Protection: IP66
- Material: Zinc-annealed steel
- Finish: X15 orange gloss powder coating
- Door Type: Internal side-hinged keylock door
- Mounting Method: Wall mounting
- Accessory Provision: Auxiliary DIN rail
- Dimensions (H x L x W): 1200mm x 200mm x 600mm
- Weight: 32 kg
Key Features
- Dual chassis arrangement for separate lighting and power distribution
- 18/24-pole capacity for modular protective devices
- 250 A main isolator
- IP66 enclosure rated for dust-tight protection and powerful water jets
- Internal side-hinged keylock door
- Auxiliary DIN rail for control and accessory devices
- Durable orange gloss powder-coated steel construction
- Suitable for metering and distribution applications
Professional Installation Requirements
- Installation, internal wiring, metering equipment fit-out and commissioning must be completed by a licensed electrician in accordance with the manufacturer's documentation, electricity distributor requirements and AS/NZS 3000. The completed assembly should be inspected, tested and verified before energisation.
Applications
- Dual light and power distribution
- Residential and multi-residential electrical installations
- Commercial electrical distribution systems
- Metering and sub-distribution applications
- Outdoor or demanding indoor installations requiring IP66 enclosure protection
Standards & Compliance
- AS/NZS 61439.1: Applicable general requirements for low-voltage switchgear and controlgear assemblies
- AS/NZS 61439.3: Applicable where configured as a distribution board intended to be operated by ordinary persons
- AS/NZS 3000: Applicable electrical installation requirements for installation and commissioning
- AS 60529: Applicable reference for the stated IP66 enclosure classification
Environmental Benefits
- Zinc-annealed steel enclosure components can be recycled at end of service life
- Durable powder-coated construction and IP66 protection can extend service life and reduce replacement waste
- Organised distribution and fault isolation can support efficient electrical system maintenance
Warranty Information
Bovara does not publish a specific warranty period for this product in the available product literature. Warranty coverage should be confirmed with the supplier; Australian Consumer Law rights continue to apply where applicable.
Available Now
Available through authorised Bovara distributors in Australia.
