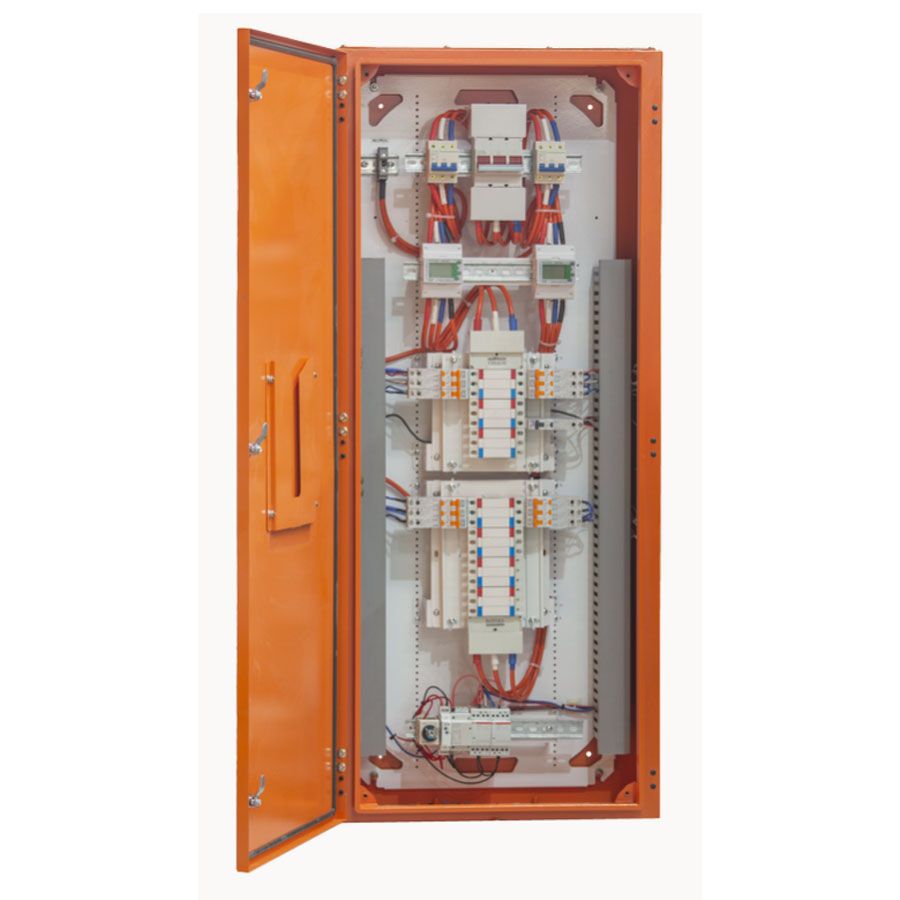

Dual Meter DB IP66 24/36P 250A 1400x600x200mm Orange Bovara
Bovara IP66 dual meter distribution board features light and power 2 chassis 24/36P, 250A isolator, auxiliary DIN rail, 1400H x 600W x 200D, X15 orange gloss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Dual Meter DB, Light and Power Distribution Board, IP66 Switchboard Enclosure, 250A Distribution Board
Technical Specifications
- Board Type: Dual meter distribution board for light and power applications
- Ingress Protection: IP66
- Rated Isolator: 250A
- Chassis Configuration: Two chassis, 24/36 pole arrangement
- Rated Voltage: 230–415V AC
- Material: Zincanneal steel
- Mounting: Wall mounted
- Cable Entry: Top and bottom entry provisions
- Internal Components: Earth and neutral bars included
- Auxiliary Equipment: Auxiliary DIN rail
- Gland Plate: 3mm aluminium
- Door Type: Internal side-hinged, key-lockable door
- Finish: Orange X15 gloss powder coating
- Escutcheon Clearance: Suitable for devices up to 51mm
- SKU: DBC2C2436M
- Dimensions (H x L x W): 1400mm x 200mm x 600mm
- Weight: 42 kg
Key Features
- IP66 enclosure protection against dust and powerful water jets
- Dual chassis arrangement for separate light and power distribution
- 250A isolator capacity
- 24/36P chassis configuration
- Auxiliary DIN rail for additional protection or control equipment
- Zincanneal steel enclosure with orange X15 powder-coated finish
- Top and bottom cable entry provisions
- Earth and neutral bars included
- Key-lockable door for controlled access
- Custom pre-wired configurations available from Bovara
Professional Installation Requirements
- Installation, assembly, electrical connection and commissioning must be performed by a licensed electrician or suitably qualified electrical contractor in accordance with the manufacturer's documentation, AS/NZS 3000 and applicable AS/NZS 61439 verification requirements.
Applications
- Residential and multi-residential metering installations
- Commercial light and power distribution
- Industrial electrical distribution
- Outdoor or exposed switchboard installations
- Projects requiring separate light and power distribution chassis
Standards & Compliance
- AS/NZS 61439.2:2016 for low-voltage switchgear and controlgear assemblies
- AS/NZS 3000:2018 for electrical installation and switchboard installation requirements
Environmental Benefits
- Zincanneal steel and aluminium components can be recycled at end of service life
- Durable powder-coated construction can extend enclosure service life and reduce replacement waste
- IP66 protection helps shield internal electrical equipment from dust and water ingress, supporting longer equipment life
Warranty Information
Bovara's specific warranty period is not publicly stated. Australian Consumer Law rights apply; confirm warranty terms, exclusions and claim requirements with the authorised distributor before purchase.
Available Now
Available through authorised Bovara distributors in Australia.
