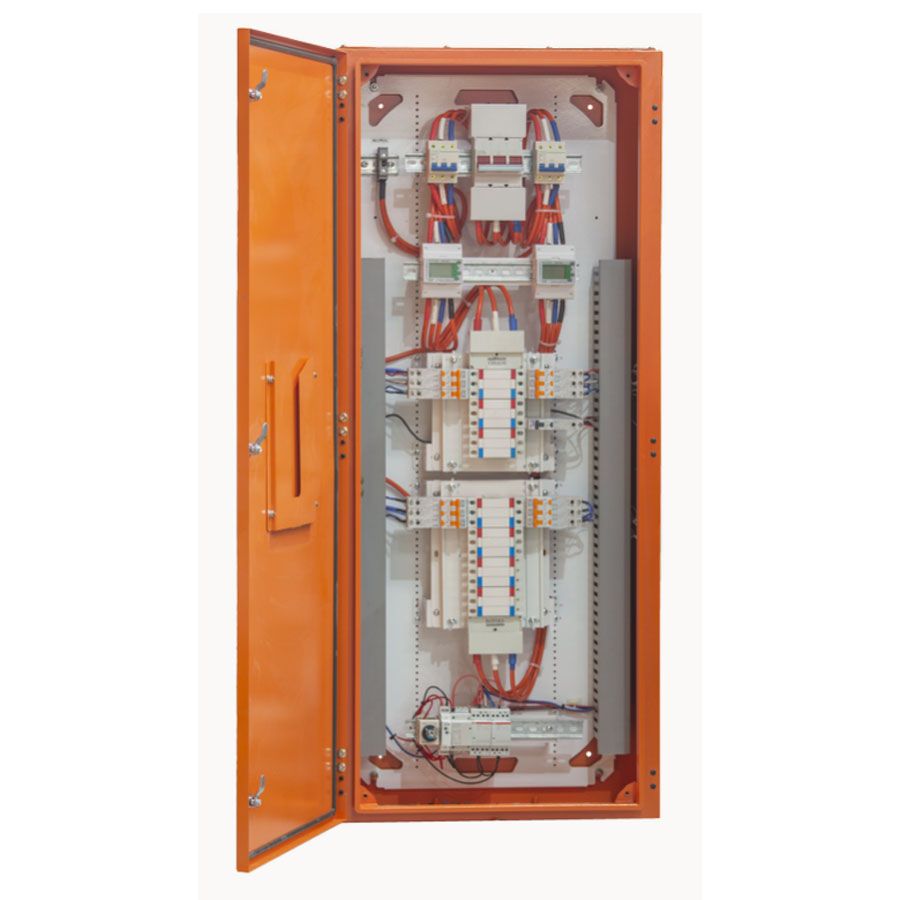

Dual Meter DB IP66 36/36P 250A 1400x600x200mm Orange Bovara
Bovara IP66 dual meter distribution board features light and power 2 chassis 36/36P, 250A isolator, auxiliary DIN rail, 1400H x 600W x 200D, X15 orange gloss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Dual Meter DB, IP66 Distribution Board, 36/36P Electrical Switchboard, 250A Meter Board
Technical Specifications
- Rated Current: 250 A
- Chassis Configuration: Dual 36/36P chassis
- Ingress Protection: IP66
- Material: Zincanneal steel
- Finish: Orange X15 high-gloss powder coating
- Cable Entry: Top and bottom entry provisions
- Included Components: Earth and neutral bars, auxiliary DIN rail
- Mounting: Wall-mounted
- Door and Locks: Hinged access door with key-lock security
- Dimensions (H x L x W): 1400mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- Dual meter configuration for separate light and power distribution
- 36/36P chassis arrangement
- 250A main isolator
- IP66 protection against dust and powerful water jets
- Zincanneal steel body for durable electrical equipment protection
- Orange X15 high-visibility powder-coated finish
- Auxiliary DIN rail for additional modular devices
- Earth and neutral bars included
- Top and bottom cable entry provisions
- Suitable for custom pre-wired switchboard configurations
Professional Installation Requirements
- Installation, assembly, wiring and commissioning must be performed by a licensed electrician in accordance with the manufacturer's documentation, AS/NZS 3000 and applicable AS/NZS 61439 verification requirements.
Applications
- Dual-meter commercial electrical distribution
- Separate lighting and power distribution
- Industrial and commercial switchboard installations
- Outdoor electrical distribution where IP66 protection is required
- Metering and sub-distribution assemblies requiring a 250A isolator
Standards & Compliance
- AS/NZS 61439.2:2016 for low-voltage switchgear and controlgear assemblies
- AS/NZS 3000:2018 Electrical installations — Wiring Rules
Environmental Benefits
- Zincanneal steel can be recovered and recycled at the end of the product's service life
- Durable powder-coated construction supports a longer service life and can reduce replacement waste
- IP66 protection helps safeguard internal electrical equipment from dust and water ingress, supporting longer equipment life
Warranty Information
One-year warranty against manufacturing defects; warranty terms, exclusions and claim requirements apply.
Available Now
Available through authorised Bovara distributors in Australia.
