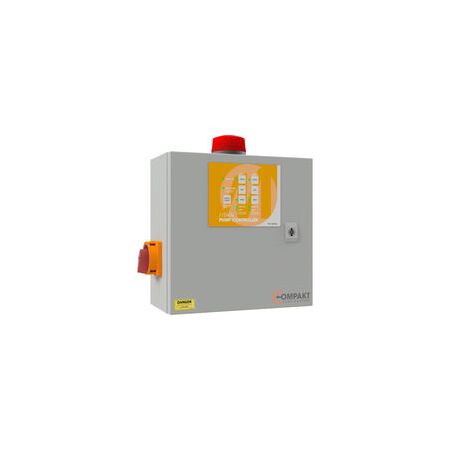

Dual Pump Controller | 0.1-6 Amp Overload | IP54 Weatherproof

SKU: FPC-37010

$1,274.40 List price: $1,661.20

+ −

30 Days Return Delivery Options

Dual pump controller with 0.1-6 amp overload protection and IP54 weatherproof enclosure—ideal for submersible sewage and storm water applications. Built for reliable level and pressure control, featuring electronic keypad and visual/audible alarms.

Description

Product Name/Title: Dual Pump Controller | 0.1-6 Amp Overload | IP54 Weatherproof

SKU: FPC-37010

Alternatively Known As: Pump Control Panel, Dual Pump Controller, Overload Pump Controller, Weatherproof Pump Controller

Technical Specifications

Enclosure: IP54 weatherproof, powder coated mild steel
Inputs: 4x digital 12Vdc for float/pressure/flow switches, 1x digital 12Vdc for external mute button
Outputs: 2x pump supply outputs, 1x BMS volt free output for common fault
Control: Electronic keypad with indicator lights and dipswitch configuration
Overload Rating: 0.1 - 6 Amp
Operation Modes: Auto/off/manual with maximum run timer and anti seize timer
Alarms: Visual strobe and audible buzzer with mute/reset/test button
Fault Protections: Pump overload, high/low level, low pressure, low flow/prime loss, maximum pump run time shut-down
Enclosure Size: 300x300x150mm
Dimensions (H x L x W): 300mm x 150mm x 300mm
Weight: 5 kg

Key Features

IP54 weatherproof rating with powder coated mild steel enclosure
Padlockable mains power isolator switch for safety
Wide range electronic overload protection for pumps
Electronic short and overload protection for strobe/buzzer alarms
Visual (strobe) and audible (buzzer) alarms with mute/reset/test button
Electronic keypad with indicator lights for power, level alarm, pump run/fault
Auto/off/manual operation of pumps with dipswitch configuration
4 digital 12Vdc inputs for float/pressure/flow switches and 1 for external mute button
2 pump supply outputs and 1 BMS volt free output for common fault
Maximum run timer, auto alternation of pump duty, anti seize timer
Fault protections including pump overload, high/low level alarms, low pressure, low flow/prime loss
Staggered pump start and level alarm delay to avoid nuisance alarms
Smart auto silencing and chirp mode alarm

Professional Installation Requirements

Professional installation by a qualified electrician or technician is recommended to ensure correct setup and compliance with safety standards.

Applications

Level Control: Submersible sewage, submersible storm water, transfer pumping
Pressure Control: Pressure boosting

Standards & Compliance

Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems

Environmental Benefits

Efficient pump operation reduces energy consumption
Auto alternation of pump duty extends pump life and reduces wear
Smart alarm silencing reduces noise pollution

Warranty Information

Standard manufacturer warranty applies. Please refer to the product manual for detailed warranty terms.

Available Now

The Dual Pump Controller FPC-37010 is available now for immediate purchase. Ideal for industrial and commercial pump control applications requiring reliable overload and fault protection.
