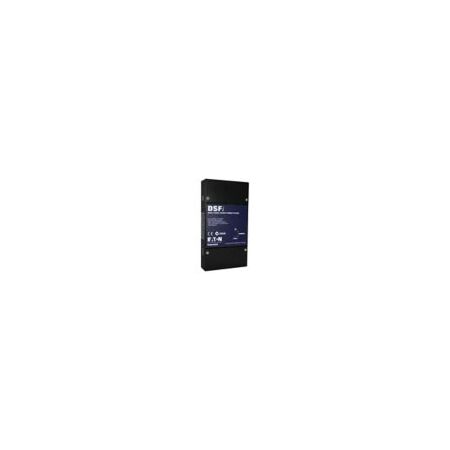

Dual Stage Surge Filter 5-32A | 40 kA Fault Current | IP20 Protection | Surface Mount by Eaton
Protect your electrical systems with the Eaton Dual Stage Surge Filter, featuring a 5-32A capacity and 40 kA fault current. Ideal for residential, commercial, and industrial applications, this filter ensures reliable surge protection with easy surface mounting on a 35 mm DIN rail.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dual Stage Surge Filter 5-32A | 40 kA Fault Current | IP20 Protection | Surface Mount by Eaton
Brand: Eaton
SKU: DSFI
Alternatively Known As: Eaton Surge Protection Filter, Dual Stage Surge Protector, 5-32A Surge Filter
Technical Specifications
- Fault current: 40 kA
- Maximum discharge current 8x20µs (Imax): 40 kA
- Nominal discharge current 8x20µs (In): 10 kA
- Operating temperature range: -10 °C to 65 °C
- Connection type: Single-phase
- Class: Class 3 Cat A and Class 3 Cat B
- Degree of protection: IP20
- Mounting method: Surface mount on 35 mm DIN rail
- Configuration: Diverter-filter-diverter
- Dimensions (H x L x W): 270mm x 50mm x 140mm
- Weight: 1.5 kg
Key Features
- Dual stage surge protection with diverter-filter-diverter configuration
- Single-phase connection
- Surface mounting on 35 mm DIN rail
- Class 3 Cat A and Class 3 Cat B protection
- IP20 degree of protection
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper surge protection performance.
Applications
- Secondary point protection in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Protects electrical equipment from surge damage, reducing electronic waste and extending equipment lifespan
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton 5-32A Dual Stage Surge Filter is available for immediate purchase, ideal for enhancing electrical system protection in residential, commercial, and industrial applications.
