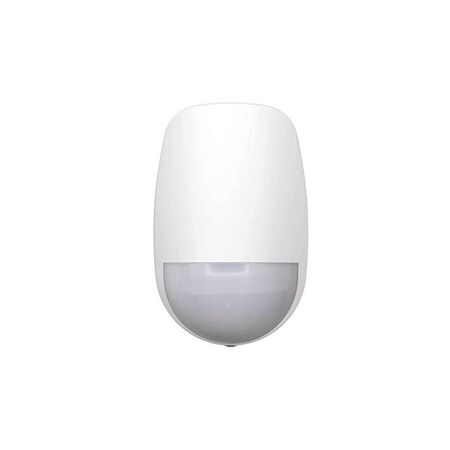

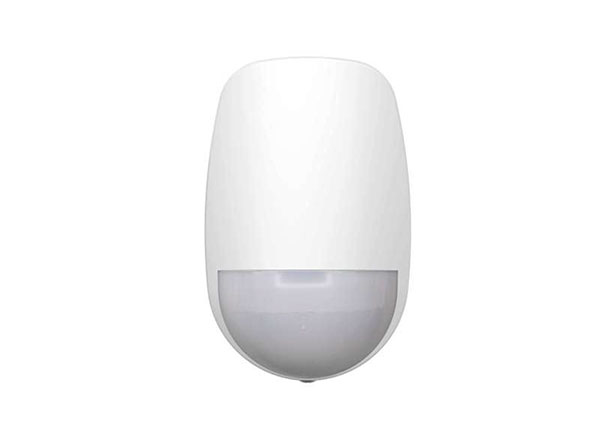

Dual-Tech Anti-Masking Detector Hikvision
Hikvision dual-tech detector features dual-tech sensing and anti-masking. Ideal for Hikvision alarm system installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 15 m Dual-Technology Anti-Mask Detector, PIR and Microwave Intrusion Detector, DS-PD2-D15AME/D15AME1
Technical Specifications
- Detection Technology: Passive infrared and microwave
- Detection Range: 15 m at 85°; 18 m curtain lens and 30 m long-range lens included
- Coverage: 60 zones across 7 planes
- Power Supply: 9–16 VDC; 12 VDC nominal
- Current Consumption: 23 mA at rest; 30 mA in alarm
- Microwave Frequency: 10.515, 10.525 and 10.535 GHz; regional 9.89, 9.90 and 9.91 GHz options
- Detection Speed: 0.3–3.0 m/s
- Alarm Response: 2.5 seconds
- Operating Temperature: -10°C to +40°C
- Installation Height: 1.8–2.4 m
- Security Classification: Grade 3; Environmental Class II to EN 50131-1 and EN 50131-2-4
- Relay Type: Solid-state alarm relay; 60 VDC, 50 mA maximum
- Optics: Sealed 3D geometric lens configuration
- Dimensions (H x L x W): 117mm x 55mm x 69mm
- Weight: 0.125 kg
Key Features
- Dual PIR and microwave detection for verified movement sensing
- Adjustable anti-masking and anti-spray detection from 0 to 1 m
- Anti-blocking technology for detecting partial PIR obstruction
- Digital temperature compensation and automatic sensitivity adjustment
- Separate microwave, PIR and alarm LED indication
- Front, rear and bracket tamper protection
- Three selectable microwave frequencies to reduce interference
- Includes wall and ceiling brackets, long-range and curtain lenses, and bracket back-tamper kit
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security installer. The detector must be correctly wired to a compatible alarm control panel, configured for the selected EOL arrangement and tested as part of the complete intrusion alarm system.
Applications
- Indoor commercial intrusion alarm systems
- Residential security alarm installations
- Warehouses, offices and retail premises
- High-security internal areas requiring anti-masking protection
- Hikvision alarm system installations using compatible wired detector inputs
Standards & Compliance
- Applicable installation reference: AS 2201.3-1991, Intruder alarm systems—Detection devices for internal use
- Manufacturer documentation identifies EN 50131-1 and EN 50131-2-4 compliance at Security Grade 3 and Environmental Class II
Environmental Benefits
- Low-voltage, low-current operation helps minimise operating energy consumption
- Sealed optics and temperature compensation support longer service life and reduced replacement waste
- Electronic components should be disposed of through appropriate e-waste recycling channels at end of life
Warranty Information
Manufacturer documentation states a 2-year warranty for the DS-PD2-D15AME; Australian warranty handling and conditions should be confirmed with the authorised distributor.
Available Now
Available through Hikvision and authorised Australian security-system distributors.
