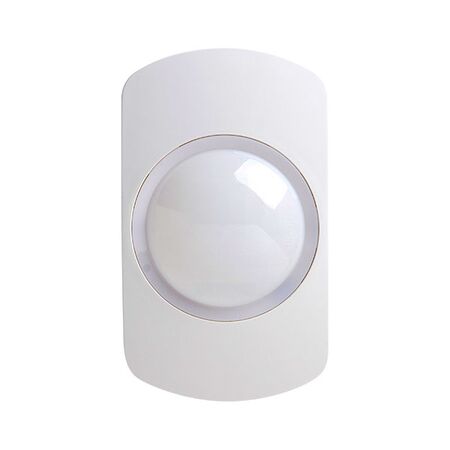

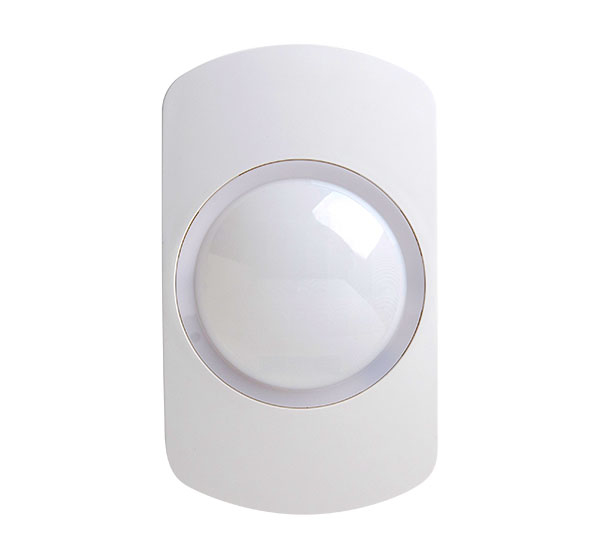

Dual Tech Motion Sensor 20m 85 Degree Pet Immunity EN50131-2-4 Tecom

BRAND: Ness
SKU: 122-003
$158.30 List price: $211.10
+ −
30 Days Return Electricians Unlock Trade Access
Tecom dual tech motion sensor features 20m range, 85 degree coverage, pet immunity and EN50131-2-4. Ideal for alarm systems.

Alternatively Known As: Tecom dual-tech motion sensor, Texecom D20, AKD-0001, PIR and microwave motion detector

Technical Specifications
  • Detection Range: 20 m
  • Coverage Angle: 85° volumetric
  • Detection Technology: Quad-element PIR and K-band microwave
  • Operating Modes: Dual Tech, PetWise and CloakWise
  • Pet Immunity: Selectable PetWise mode
  • Mounting: Wall mount
  • Recommended Mounting Height: 1.5–3 m
  • Security Grade: EN50131-2-4 Grade 2
  • Wiring: Wired detector with selectable built-in EOL resistors
  • Dimensions (H x L x W): 112mm x 43mm x 65mm
  • Weight: 0.113 kg
Key Features
  • 20 m detection range with 85° volumetric coverage
  • Dual confirmation using PIR and microwave detection
  • Quad-element pyro sensor and K-band microwave technology
  • Selectable PetWise mode for reduced detection of pets
  • CloakWise mode helps maintain detection performance in challenging conditions
  • Front-accessible wiring and adjustable mounting points
  • Designed for residential and commercial intrusion alarm systems
Professional Installation Requirements
  • Installation, wiring, commissioning and testing should be performed by a suitably qualified security technician in accordance with the alarm panel manufacturer's instructions and AS/NZS 2201.1.
Applications
  • Residential intrusion alarm systems
  • Commercial security systems
  • Offices, retail premises and light industrial sites
  • Indoor areas requiring pet-tolerant motion detection
Standards & Compliance
  • EN50131-2-4 Grade 2 as specified for the detector
  • AS/NZS 2201.1:2007 for intruder alarm system design, installation, commissioning and maintenance
Environmental Benefits
  • Dual-technology confirmation and selectable pet immunity can reduce false alarms, unnecessary call-outs and associated vehicle energy use
  • Durable wired construction can support longer service life and reduce replacement waste
  • Electronic components should be disposed of through appropriate e-waste recycling channels at end of life
Warranty Information

Tecom hardware is listed with a 5-year warranty by an Australian Tecom distributor; confirm the applicable terms with the supplying distributor before purchase.

Available Now

Available through Tecom/Texecom security-equipment distributors and authorised Australian security-system suppliers.
