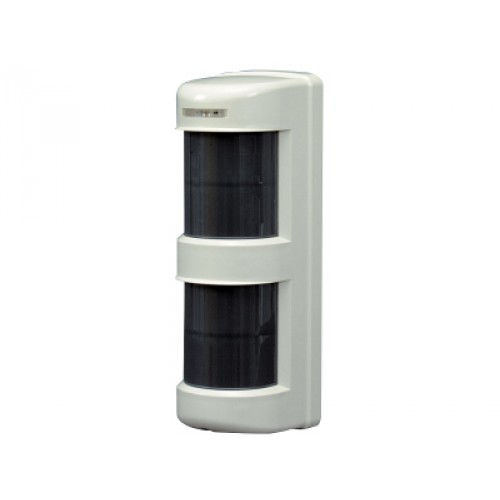

Dual Zone Outdoor PIR Sensor Hardwired -20 to +50 Degree C Ness
Ness dual zone outdoor PIR sensor features adjustable detection and a -20 to +50 Degree C range. Ideal for outdoor alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness Dual-Zone Outdoor PIR, Takex MS-12FE Outdoor PIR, Twin Dual-Zone Motion Sensor, Pet-Immune Outdoor PIR
Technical Specifications
- Detection Type: Passive infrared dual-zone detection
- Detection Coverage: Two 90° detection zones with up to 180° total coverage
- Detection Range: Adjustable from 2 m to 12 m
- Power Supply: 12–30 V DC, non-polarity
- Current Consumption: 40 mA maximum
- Alarm Output: Selectable normally open or normally closed dry-contact relay
- Alarm Contact Rating: 30 V AC/DC, 0.5 A maximum resistive load
- Tamper Output: Normally closed dry-contact relay, 30 V AC/DC, 0.5 A maximum
- Detection Mode: Selectable AND or OR operation
- Sensitivity Adjustment: Approximately 30% to 170%
- Pulse Count: Selectable 1 or 3 pulse operation
- Relay Delay: Approximately 2 seconds to 5 minutes
- Ingress Protection: IP54
- Operating Temperature: -20°C to +50°C
- Mounting: Wall or pole mounting at 0.8–1.2 m installation height
- Construction: AES resin body with PE resin lens
- Dimensions (H x L x W): 80mm x 234mm x 91mm
- Weight: 0.47 kg
Key Features
- Twin dual-zone PIR sensing for improved outdoor movement detection
- Selectable AND or OR detection modes
- Adjustable horizontal coverage and detection distance
- Up to 180° wide-angle coverage using two independent sensor heads
- IP54 weather-resistant enclosure for indoor or outdoor use
- Adjustable sensitivity and pulse-count settings
- Selectable normally open or normally closed alarm relay
- Built-in tamper output and operation LED
- Designed to reduce unwanted activations from small animals when configured in AND mode
- Wall and pole mounting options available
Professional Installation Requirements
- Installation should be performed by a qualified security installer. The sensor requires hardwired connection to a 12–30 V DC alarm system and should be installed, commissioned and maintained in accordance with AS/NZS 2201.1 and the manufacturer's instructions.
Applications
- Outdoor perimeter security
- Residential alarm systems
- Commercial and industrial security systems
- Driveway, pathway and boundary monitoring
- Outdoor movement detection around buildings and protected areas
Standards & Compliance
- AS/NZS 2201.1:2007 is applicable to the design, installation, commissioning and maintenance of the connected intruder alarm system; product-specific compliance was not independently verified.
Environmental Benefits
- IP54 weather-resistant construction supports extended service life and can reduce premature replacement waste
- Long-life resin enclosure and adjustable detection settings support durable outdoor installation
- Electronic components should be disposed of through appropriate e-waste recycling channels at end of service life
Warranty Information
Ness lists a 3-year warranty from date of purchase for Ness manufactured or supplied products. The Takex MS-12FE manufacturer manual states a 12-month warranty from original shipment; confirm the applicable warranty terms with Ness or the authorised distributor at purchase.
Available Now
Available through Ness and authorised Australian security distributors; Ness lists the MS-12FE as a supplied Takex outdoor PIR product.
