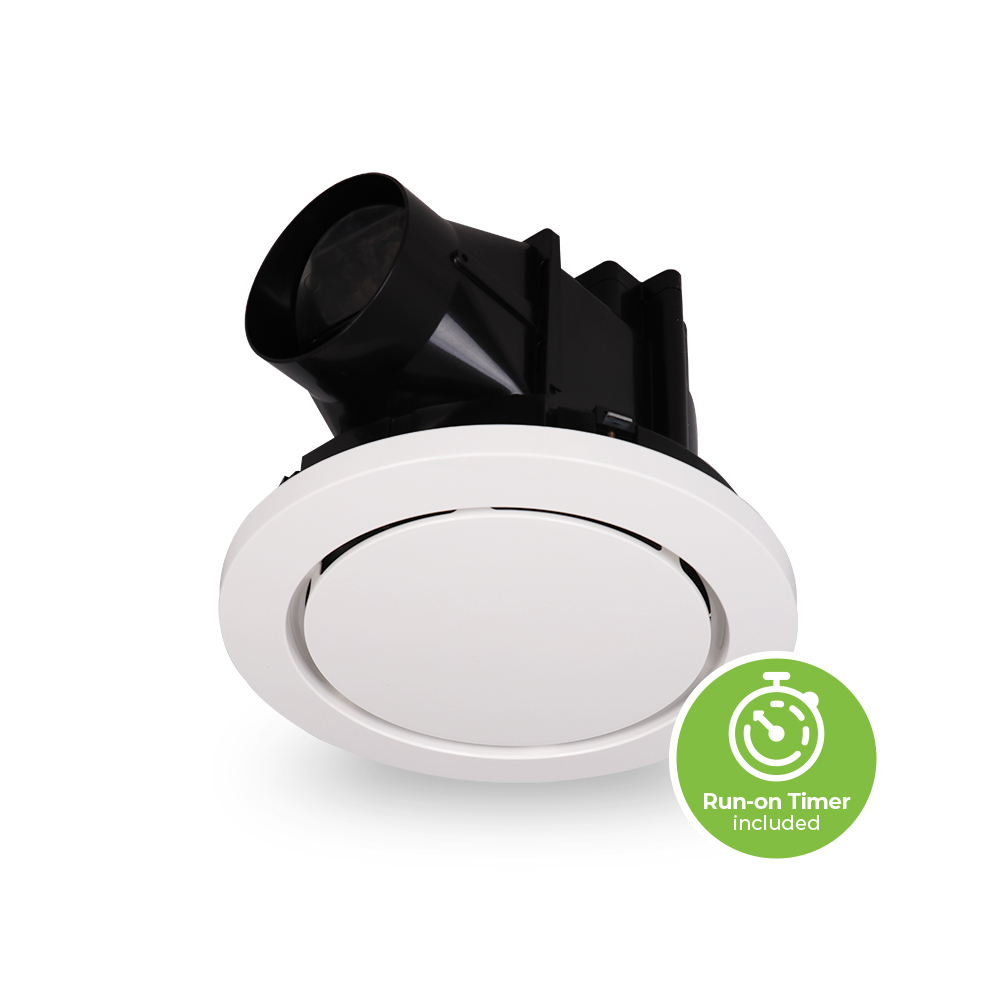

240mm 30W Ducted Exhaust Fan | IPx4 Rated | Low Noise 42 dB | Recessed Installation | by atom
The 240mm 30W Ducted Exhaust Fan is designed for efficient air extraction in residential and commercial spaces. With an IPx4 rating for moisture resistance and a low noise level of 42 dB, this fan is perfect for bathrooms and kitchens. Its durable ball bearing motor ensures long-lasting performance, making it an ideal choice for effective ventilation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bathroom exhaust fan, ducted ventilation fan, ceiling exhaust fan, inline duct fan
Technical Specifications
- IP Rating: IPx4
- Installation Type: Recessed
- Working Temperature Range: -10 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Air Outlet Diameter: 100 mm
- Noise Level: 42 dB
- Motor Wattage: 30 W
- Motor Type: Ball bearing
- Fan Type: Centrifugal
- Fan Size: 240 mm
- Air Extraction Capacity: 270 m3/hr
- Wiring Type: Re-wireable terminal block (4 pin)
- Product Design Life: 10 years at 2 hours daily use
- Dimensions (H x L x W): 100mm x 240mm x 240mm
- Weight: 1.5 kg
Key Features
- IPx4 rated for moisture resistance
- Recessed installation with matt white fascia
- Ball bearing motor for durability
- Centrifugal fan type for efficient air extraction
- Low noise level at 42 dB
- Re-wireable terminal block (4 pin) for easy wiring
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential bathrooms and kitchens
- Commercial washrooms and utility areas
- General ventilation for indoor spaces requiring air extraction
Standards & Compliance
- Complies with AS/NZS 60335.1 - Safety of household and similar electrical appliances
- Complies with AS/NZS 60335.2.80 - Particular requirements for fans
- Complies with AS/NZS 60669.1 - Switches for household and similar fixed electrical installations
- Complies with AS 60669.2.1 - Particular requirements for switches for appliances
- Complies with CISPR 14 and CISPR 15 - Electromagnetic compatibility standards
Environmental Benefits
- Energy-efficient 30W motor reduces power consumption
- Long product design life of 10 years minimizes waste
- Low noise operation contributes to a comfortable environment
Warranty Information
3 years return to base warranty or 2500 operating hours, whichever occurs first.
Available Now
The Atom 240mm 30W Ducted Exhaust Fan with Round White Fascia is available for immediate purchase, ideal for residential and commercial ventilation applications.
