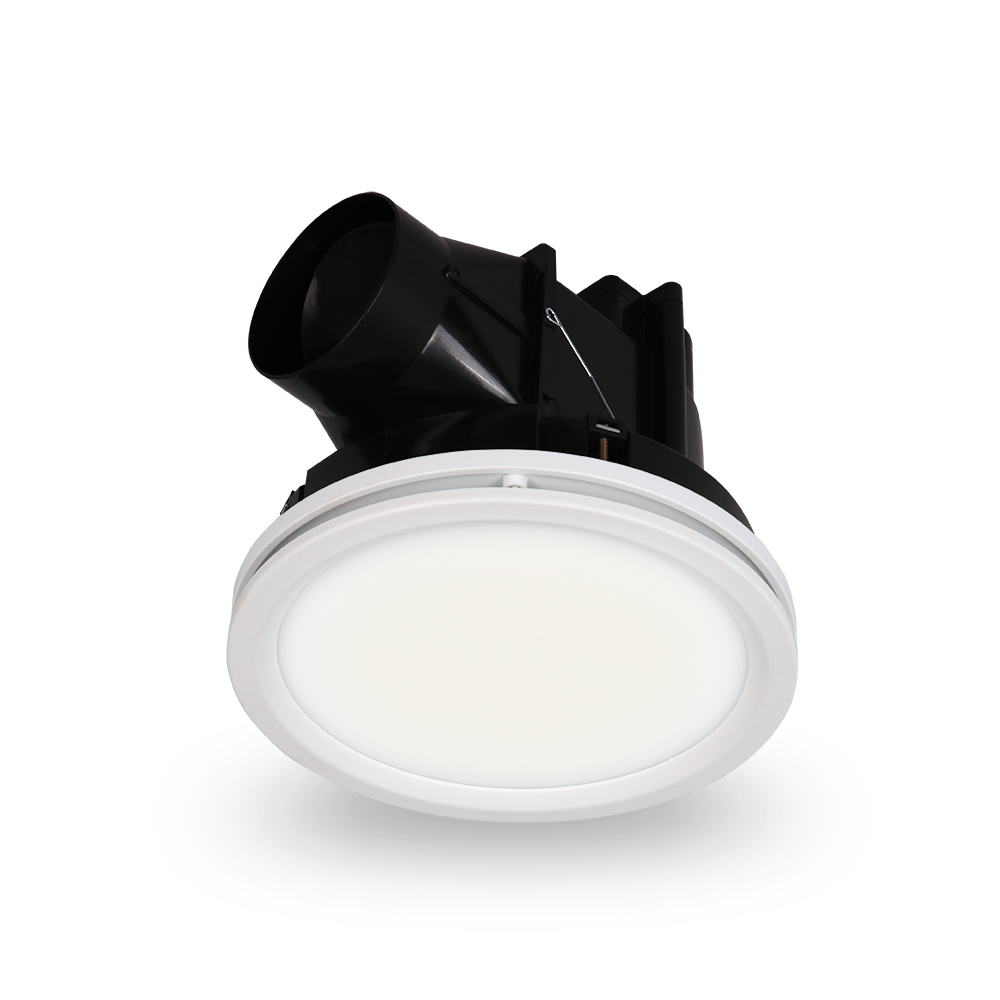

240mm 30W Ducted Exhaust Fan | Recessed Installation | IPx4 Rated | Low Noise 42 dB | by atom

BRAND: Atom
SKU: ECLIPSE/240/WH/SQ
$80.40 List price: $97.30
+
The 240mm 30W Ducted Exhaust Fan is designed for efficient ventilation in residential and commercial spaces. With a recessed installation and a sleek matt white square fascia, it features an IPx4 rating for moisture resistance and operates at a low noise level of 42 dB. Ideal for bathrooms and kitchens, this fan ensures optimal air extraction with a durable ball bearing motor, making it a reliable choice for continuous use.

Alternatively Known As: Ducted Bathroom Exhaust Fan, 240mm Ventilation Fan, Recessed Exhaust Fan, Square Fascia Exhaust Fan

Technical Specifications
  • IP Rating: IPx4
  • Installation Type: Recessed
  • Working Temperature Range: -10 to 40 °C
  • Input Voltage: 230Vac (216Vac - 253Vac range)
  • Input Frequency: 50 Hz
  • Motor Wattage: 30 W
  • Fan Size: 240 mm
  • Air Extraction Rate: 270 m3/hr
  • Noise Level: 42 dB
  • Motor Type: Ball bearing
  • Fan Type: Centrifugal
  • Driver: Flex & Plug with 900 mm lead
  • Wiring Type: Re-wireable Flex & Plug (3 pin)
  • Product Design Life: 10 years based on 2 hours daily use
  • Dimensions (H x L x W): 270mm x 270mm x 270mm
  • Weight: 2.5 kg
Key Features
  • Recessed installation with matt white square fascia
  • IPx4 rated for moisture resistance
  • Ball bearing motor for durability
  • Centrifugal fan type for efficient air extraction
  • Low noise level at 42 dB
  • Flexible wiring with re-wireable 3-pin flex and plug
  • Designed for continuous operation with a 10-year product design life
Professional Installation Requirements
  • Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
  • Residential bathrooms and kitchens
  • Commercial washrooms and utility areas
  • Ventilation for small to medium ducted systems
Standards & Compliance
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS CISPR 14.1
Environmental Benefits
  • Energy-efficient 30W motor reduces power consumption
  • Long product design life minimizes waste and replacement frequency
Warranty Information

3 years return to base warranty or 2500 operating hours, whichever occurs first.

Available Now

The Atom 240mm 30W Ducted Exhaust Fan with Square White Fascia is available for immediate purchase, ideal for residential and commercial ventilation applications.
