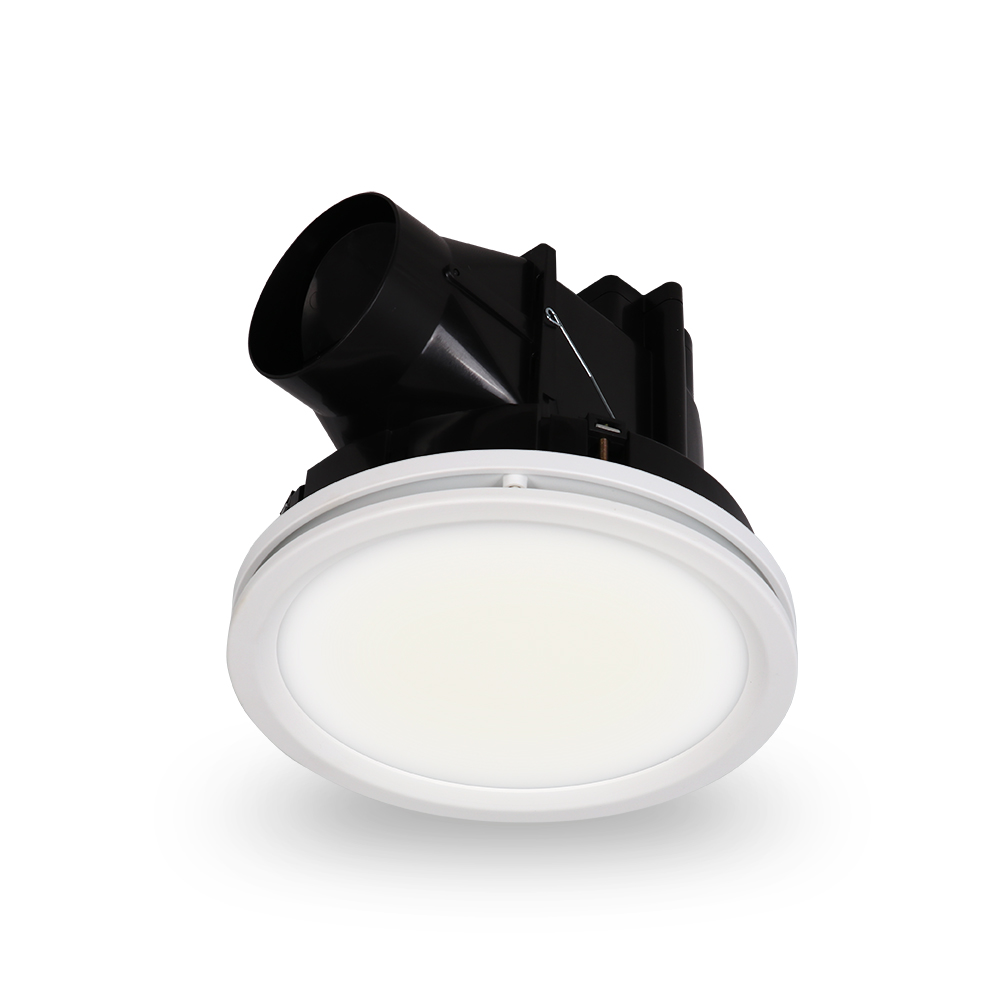

290mm 35W Ducted Exhaust Fan | IPx4 Rated | Recessed Installation | Quiet Operation | by atom
The 290mm 35W ducted exhaust fan is designed for efficient ventilation in residential and commercial spaces. With an IPx4 rating for moisture resistance and a sleek matt white finish, it ensures durability and aesthetic appeal. Ideal for bathrooms and kitchens, this fan operates quietly at 45 dB, making it perfect for continuous use in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ducted bathroom exhaust fan, 290mm ventilation fan, square fascia exhaust fan, duct fan 35W
Technical Specifications
- IP Rating: IPx4
- Installation Type: Recessed
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Working Temperature Range: -10 to 40 °C
- Motor Wattage: 35 W
- Fan Size: 290 mm
- Air Extraction Rate: 350 m3/hr
- Noise Level: 45 dB
- Motor Type: Ball bearing
- Fan Type: Centrifugal
- Wiring: Re-wireable Flex & Plug (3 pin), 900 mm lead length
- Product Design Life: 10 years based on 2 hours daily use
- Dimensions (H x L x W): 290mm x 150mm x 290mm
- Weight: 2.5 kg
Key Features
- IPx4 rated for moisture resistance
- Recessed installation with matt white finish fascia
- Ball bearing motor for durability
- Centrifugal fan type for efficient air extraction
- Noise level at 45 dB for quiet operation
- Flexible wiring with re-wireable 3-pin plug
- Designed for continuous operation within -10 to 40 °C
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential bathrooms and kitchens
- Commercial washrooms and utility areas
- Ventilation for small to medium ducted systems
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS CISPR 14.1
Environmental Benefits
- Energy-efficient 35W motor reduces power consumption
- Long product design life of 10 years minimizes waste
- Low noise operation contributes to reduced noise pollution
Warranty Information
3 years return to base warranty or 2500 operating hours, whichever occurs first.
Available Now
The Atom 290mm 35W ducted exhaust fan with square white fascia is available for immediate purchase, ideal for residential and commercial ventilation applications.
