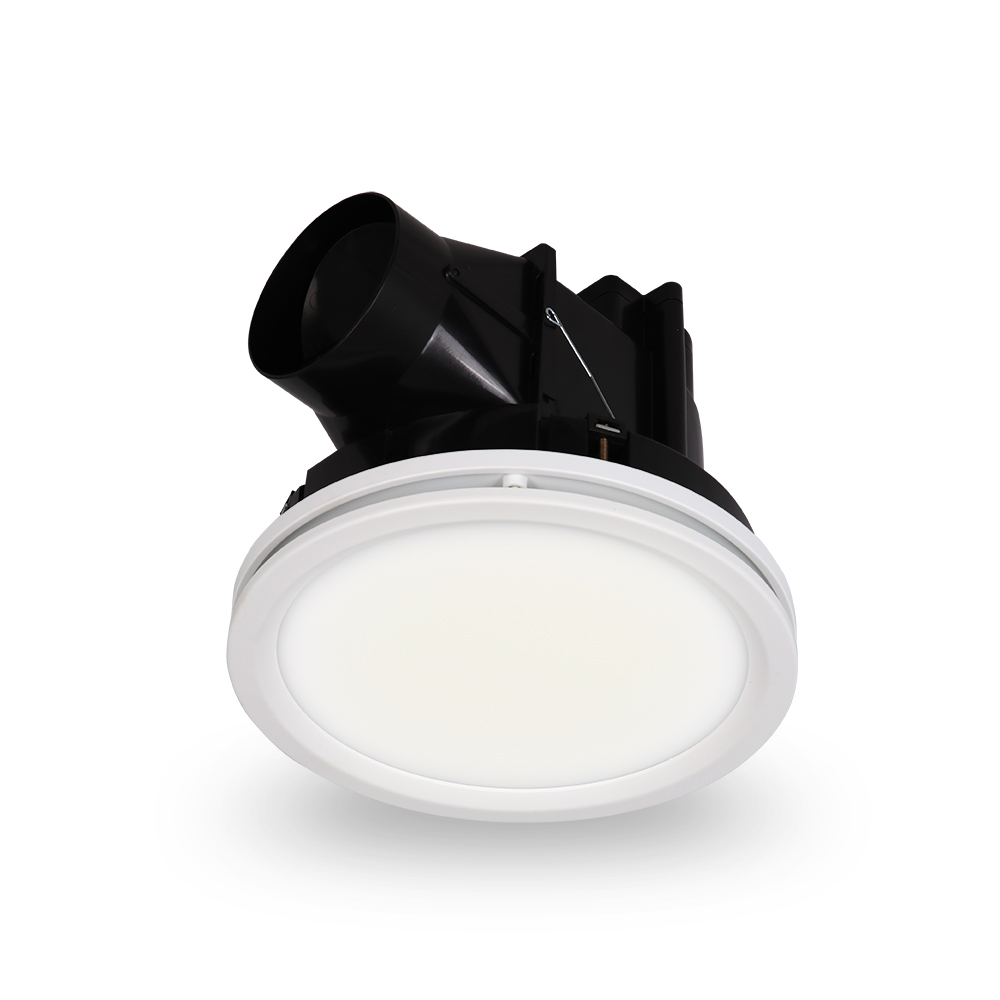

290mm 35W Ducted Exhaust Fan | IPx4 Rated | Centrifugal Design | Quiet Operation | by atom
The 290mm 35W Ducted Exhaust Fan is designed for efficient air extraction in residential and commercial spaces. With an IPx4 rating for moisture resistance and a quiet operation at 45 dB, this fan is perfect for bathrooms and kitchens. Its durable ball bearing motor ensures long-lasting performance, making it an ideal choice for continuous ventilation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ducted bathroom exhaust fan, round duct fan, 290mm ventilation fan, ceiling exhaust fan
Technical Specifications
- IP Rating: IPx4
- Motor Wattage: 35 W
- Fan Size: 290 mm
- Air Extraction Rate: 350 m3/hr
- Noise Level: 45 dB
- Motor Type: Ball bearing
- Installation Type: Recessed
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Wiring: Re-wireable flex & plug (3 pin), 900 mm lead length
- Working Temperature Range: -10 to 40 °C
- Dimensions (H x L x W): 150mm x 290mm x 290mm
- Weight: 2.5 kg
Key Features
- IPx4 rated for moisture resistance
- Ball bearing motor for durability
- Centrifugal fan type for efficient air extraction
- Recessed installation with matt white finish
- Noise level of 45 dB for quiet operation
- Flexible wiring with re-wireable 3-pin plug
- Designed for continuous operation with 10 years product design life
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential bathrooms and kitchens
- Commercial washrooms and utility areas
- General ventilation for indoor spaces requiring ducted exhaust
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS CISPR 14.1
Environmental Benefits
- Energy-efficient 35W motor reduces power consumption
- Long product design life minimizes waste and replacement frequency
Warranty Information
3 years return to base warranty or 2500 operating hours, whichever occurs first.
Available Now
The Atom 290mm 35W ducted exhaust fan with round white fascia is available for immediate purchase, ideal for residential and commercial ventilation applications.
