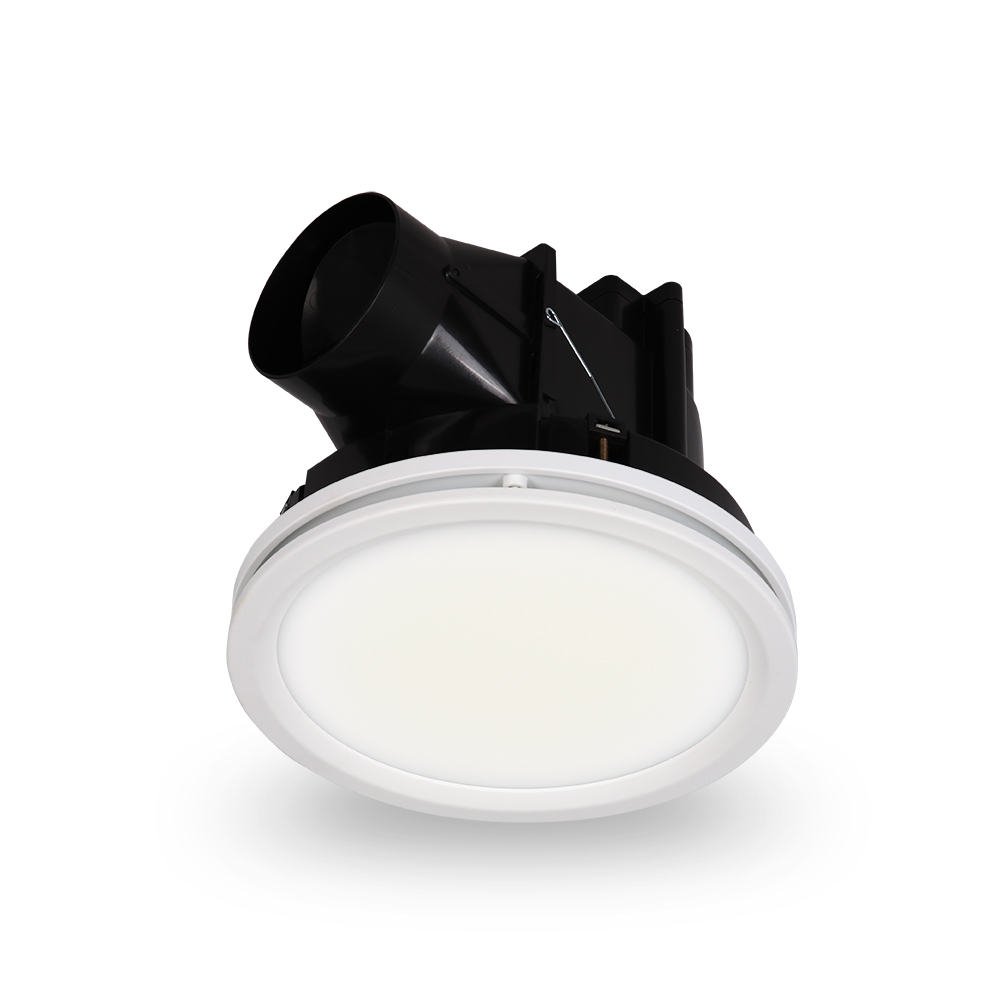

290mm 35W Ducted Exhaust Fan | Tri-CCT Light | IPx4 Rated | Low Noise 45 dB | by atom
The 290mm 35W Ducted Exhaust Fan is designed for efficient ventilation in residential and commercial spaces. Featuring a Tri-CCT light with warm, cool, and daylight options, this fan ensures optimal lighting while maintaining a low noise level of 45 dB. With an IPx4 rating for moisture resistance and a durable ball bearing motor, it's perfect for bathrooms and kitchens, providing reliable air extraction and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ducted Exhaust Fan with Light, Bathroom Exhaust Fan, Ventilation Fan with Tri-CCT Light, Ceiling Exhaust Fan
Technical Specifications
- IP Rating: IPx4
- Installation Type: Recessed
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Working Temperature Range: -10 to 40 °C
- Motor Wattage: 35 W
- Fan Size: 290 mm
- Air Extraction Rate: 350 m3/hr
- Noise Level: 45 dB
- Motor Type: Ball bearing
- Fan Type: Centrifugal
- Lighting Power: 12W or 18W options
- Lighting Output: 900-1500 lumens depending on CCT
- Colour Rendering Index (CRI): >80
- Driver: Flex & Plug with 900 mm lead
- Wiring Type: Re-wireable Flex & Plug (3 pin)
- Dimensions (H x L x W): 150mm x 290mm x 290mm
- Weight: 2.5 kg
Key Features
- Recessed installation with matt white finish fascia
- Tri-CCT lighting with warm white (3000K), cool white (4000K), and daylight (5000K) options
- IPx4 rated for moisture resistance
- Ball bearing motor for durability
- Centrifugal fan type providing efficient air extraction
- Low noise level of 45 dB
- Flexible wiring with re-wireable 3-pin flex and plug
- Product design life of 10 years based on 2 hours daily use
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential bathrooms and kitchens for ventilation
- Commercial washrooms and small office ventilation
- General air extraction in indoor spaces requiring quiet operation
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS CISPR 14.1
Environmental Benefits
- Energy-efficient motor reduces power consumption
- Long product design life minimizes waste and replacement frequency
- Tri-CCT lighting allows for customizable energy use based on lighting needs
Warranty Information
3 years return to base warranty or 2500 operating hours, whichever occurs first.
Available Now
The Atom 290mm 35W Ducted Exhaust Fan with Round White Fascia and Tri-CCT Light is available for immediate purchase, ideal for residential and commercial ventilation applications.
