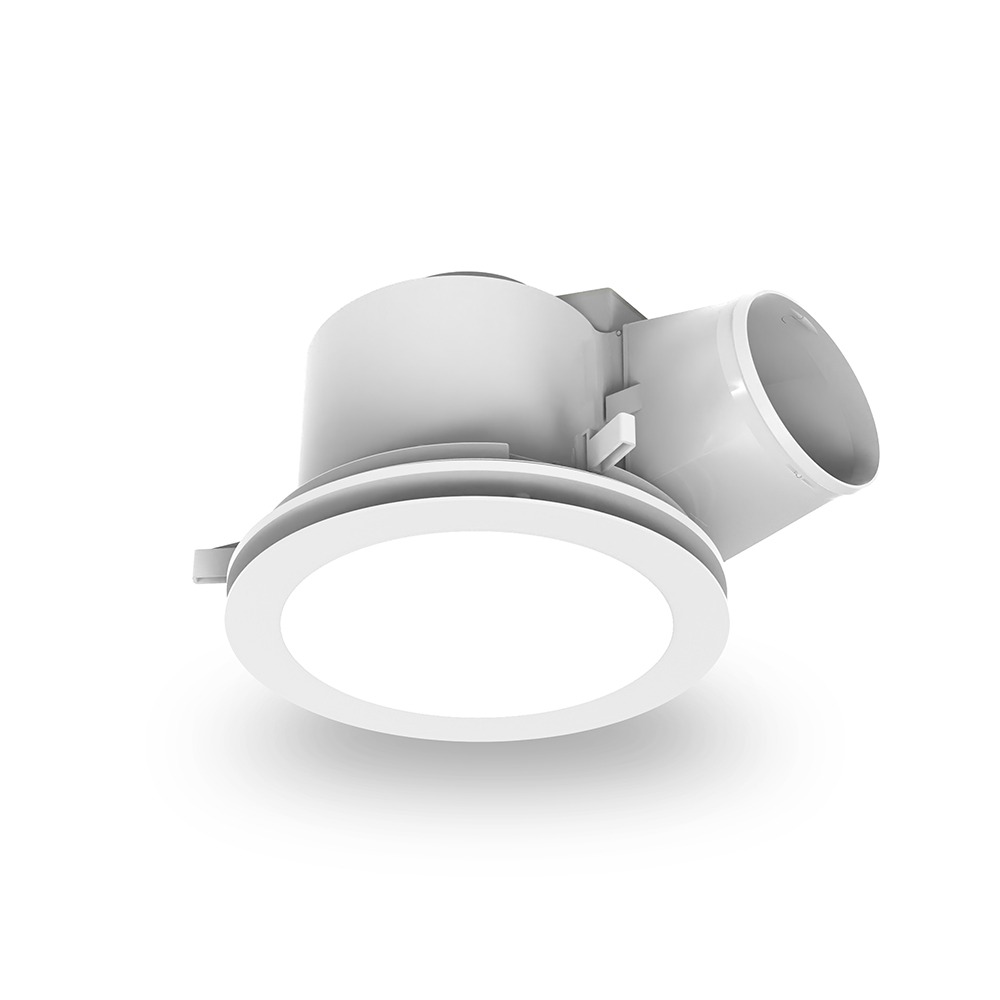

19W Ducted High Velocity DC Exhaust Fan | 550 m3/hr Airflow | IPx4 Rated | Matt White Finish | by atom
The 19W Ducted High Velocity DC Exhaust Fan is designed for efficient air extraction in residential and commercial spaces. With a powerful airflow of 550 m3/hr and an IPx4 rating for moisture resistance, this fan is perfect for bathrooms and kitchens. Its ball bearing motor ensures quiet operation, while the sleek matt white finish allows for seamless integration into any decor.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ducted Exhaust Fan, High Velocity Ventilation Fan, DC Exhaust Fan, Bathroom Exhaust Fan, Kitchen Exhaust Fan
Technical Specifications
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Motor Wattage: 20 W
- Air Extraction Rate: 550 m3/hr
- Noise Level: 42 dB
- Fan Type: Centrifugal
- Motor Type: Ball bearing
- IP Rating: IPx4
- Installation Type: Recessed
- Fitting Colour: White
- Product Finish: Matt
- Duct Outlet Diameter: 150 mm
- Colour Rendering Index (CRI): >80
- Colour Temperature Options: Cool White (4000K), Warm White (3000K), Daylight (5000K)
- Dimmable: No
- Dimensions (H x L x W): 295mm x 150mm x 295mm
- Weight: 2.5 kg
Key Features
- High velocity centrifugal fan for efficient air extraction
- Ball bearing motor for durability and quiet operation
- Matt white recessed round fascia for aesthetic integration
- IPx4 rated for moisture resistance
- Duct outlet size: 150 mm
- Noise level: 42 dB
- Non-dimmable driver
Professional Installation Requirements
- Professional installation by a licensed electrician or qualified HVAC technician is recommended to ensure compliance with electrical and building codes.
Applications
- Residential bathrooms and kitchens for ventilation
- Commercial washrooms and utility areas
- General air extraction in ducted ventilation systems
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS CISPR 15
- AS/NZS 4268
- AS/NZS CISPR 14
Environmental Benefits
- Energy-efficient DC motor reduces power consumption
- Low noise operation minimizes noise pollution
- IPx4 rating ensures durability and longer product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Atom's warranty policy for details.
Available Now
The Atom 295mm 19W Ducted High Velocity DC Exhaust Fan with Round White Fascia is available for immediate purchase, ideal for residential and commercial ducted ventilation applications.
