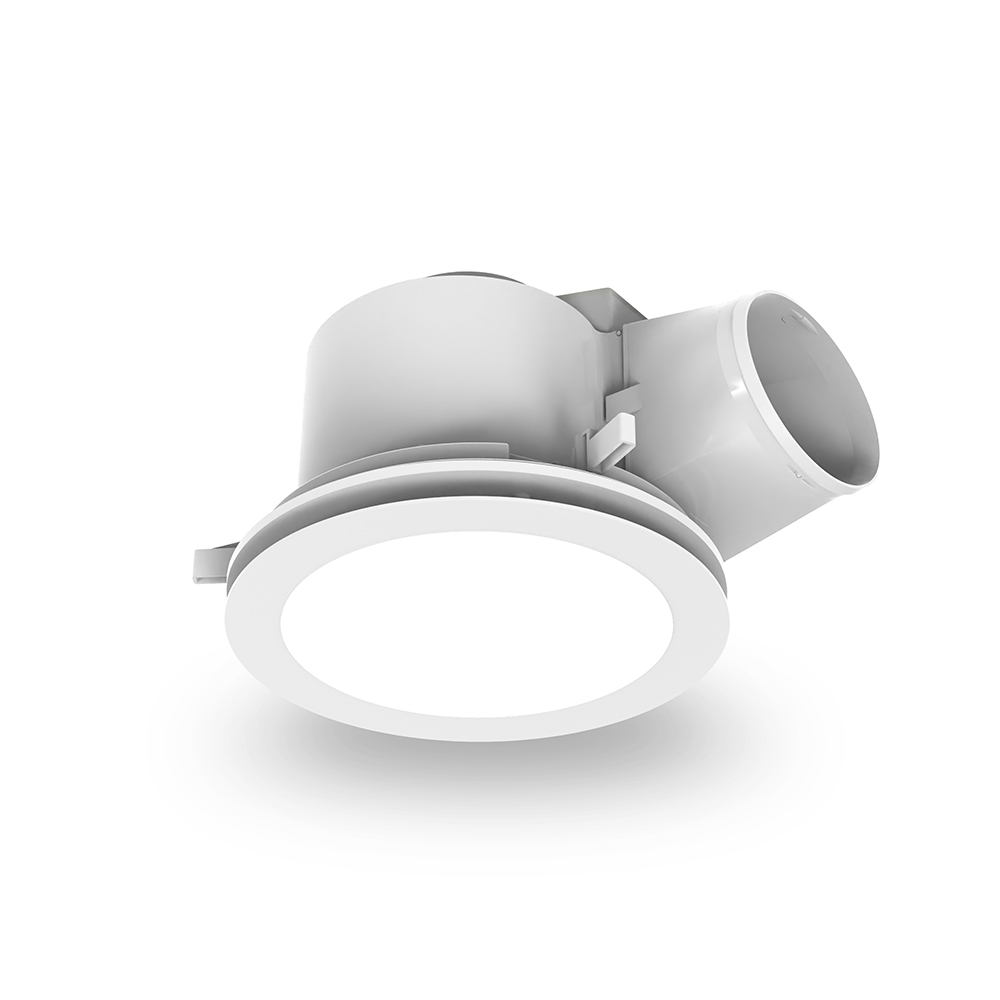

240mm 19W Ducted High Velocity DC Exhaust Fan | IPx4 Rated | Quiet Operation | Recessed White Fascia | by atom
The 240mm 19W Ducted High Velocity DC Exhaust Fan is designed for efficient air extraction in residential and commercial spaces. With a powerful centrifugal fan and an IPx4 rating for moisture resistance, it ensures quiet operation at just 42 dB. Ideal for bathrooms and kitchens, this fan features a sleek recessed design with a matt white round fascia, making it both functional and stylish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ducted Exhaust Fan, High Velocity Bathroom Fan, DC Exhaust Fan 240mm, Round Fascia Exhaust Fan
Technical Specifications
- IP Rating: IPx4
- IC Rating: Do not cover
- Fitting Colour: White
- Product Finish: Matt
- Installation Type: Recessed
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Motor Wattage: 20 W
- Fan Type: Centrifugal
- Air Extraction: 420 m3/hr
- Noise Level: 42 dB
- Motor Type: Ball bearing
- Driver: Non-dimmable
- Dimensions (H x L x W): 240mm x 240mm x 240mm
- Weight: 2.5 kg
Key Features
- High velocity centrifugal fan for efficient air extraction
- Ball bearing motor for durability and quiet operation
- Recessed installation with matt white round fascia
- IPx4 rated for moisture resistance
- Noise level at 42 dB for quiet performance
- Non-dimmable driver for consistent operation
Professional Installation Requirements
- Professional installation by a licensed electrician or qualified HVAC technician is recommended to ensure compliance with electrical and building codes.
Applications
- Residential bathrooms and kitchens for ventilation
- Commercial washrooms and utility areas
- General air extraction in ducted ventilation systems
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS CISPR 14
- AS/NZS 4268
Environmental Benefits
- Energy-efficient DC motor reduces power consumption
- Improves indoor air quality by effective ventilation
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The Atom 240mm 19W Ducted High Velocity DC Exhaust Fan with Round White Fascia is available for immediate purchase, ideal for residential and commercial ventilation applications.
