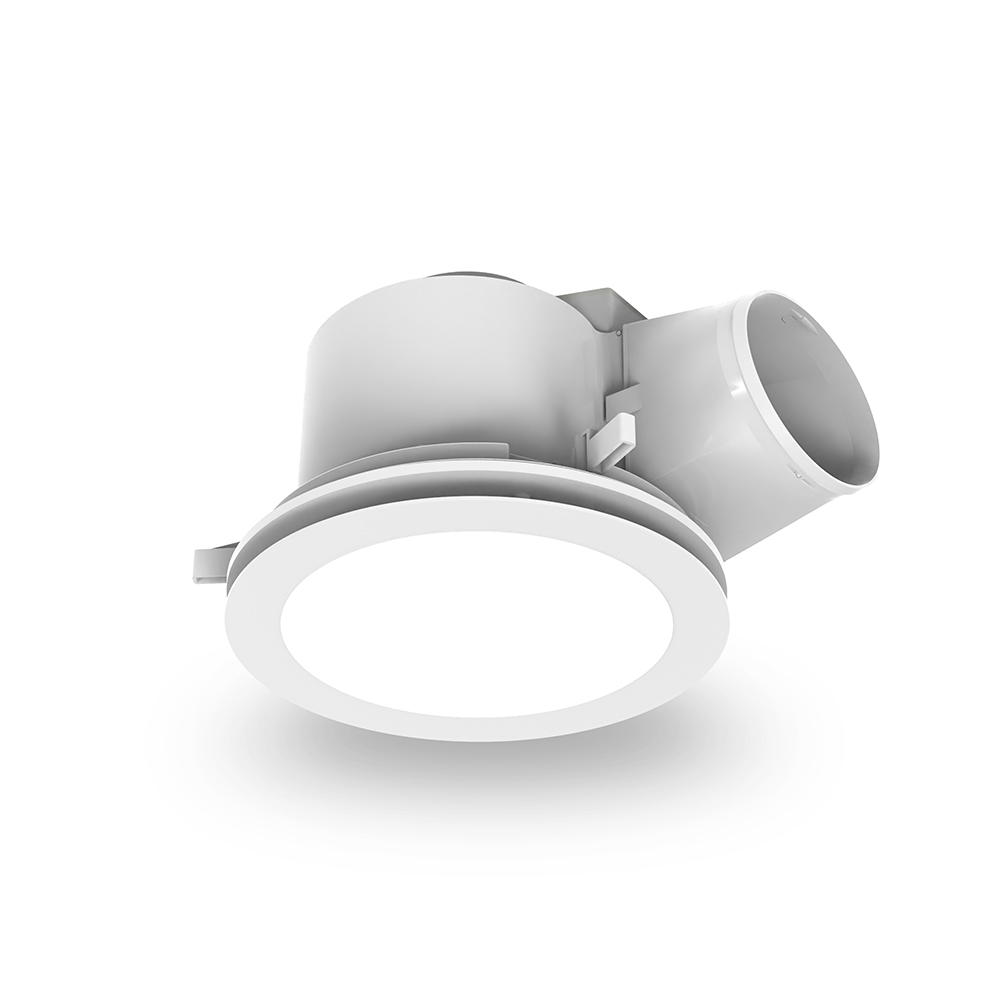

295mm 25W Ducted High Velocity DC Exhaust Fan | Tri-CCT Light | IPx4 Rated | by atom
The 295mm 25W Ducted High Velocity DC Exhaust Fan is designed for efficient ventilation in residential and commercial spaces. Featuring a Tri-CCT light with options for warm, cool, and daylight, this fan ensures optimal air extraction at 550 m3/hr while maintaining a low noise level of 42 dB. Ideal for bathrooms and kitchens, it combines functionality with a sleek matt white finish, making it a perfect choice for modern interiors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ducted Exhaust Fan with Tri-CCT Light, High Velocity Bathroom Fan, DC Exhaust Fan with LED Light
Technical Specifications
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Motor Wattage: 25 W
- Air Extraction Rate: 550 m3/hr
- Noise Level: 42 dB
- Fan Type: Centrifugal
- Motor Type: Ball bearing
- IP Rating: IPx4
- Installation Type: Recessed
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT (3000K, 4000K, 5000K)
- Lamp Output: Warm White 1600 lm, Cool White 1700 lm, Daylight 1650 lm
- Dimmable: No
- Dimensions (H x L x W): 150mm x 295mm x 295mm
- Weight: 2.5 kg
Key Features
- Recessed installation with matt white finish
- Tri-CCT lighting with cool white, warm white, and daylight options
- Ball bearing motor for durability
- Centrifugal fan type for efficient air extraction
- IPx4 rated for moisture resistance
- Noise level as low as 36-42 dB depending on model
- Non-dimmable driver
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential bathrooms and kitchens for ventilation
- Commercial washrooms and utility areas
- Any indoor space requiring high velocity air extraction and lighting
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS CISPR 15
- AS/NZS 4268
- AS/NZS CISPR 14
Environmental Benefits
- Energy-efficient DC motor reduces power consumption
- Tri-CCT LED lighting minimizes energy use while providing versatile lighting options
- IPx4 rating ensures durability and longevity, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Atom's warranty policy for details.
Available Now
The Atom 295mm 25W Ducted High Velocity DC Exhaust Fan with Tri-CCT Light is available for immediate purchase, ideal for residential and commercial ventilation and lighting applications.
