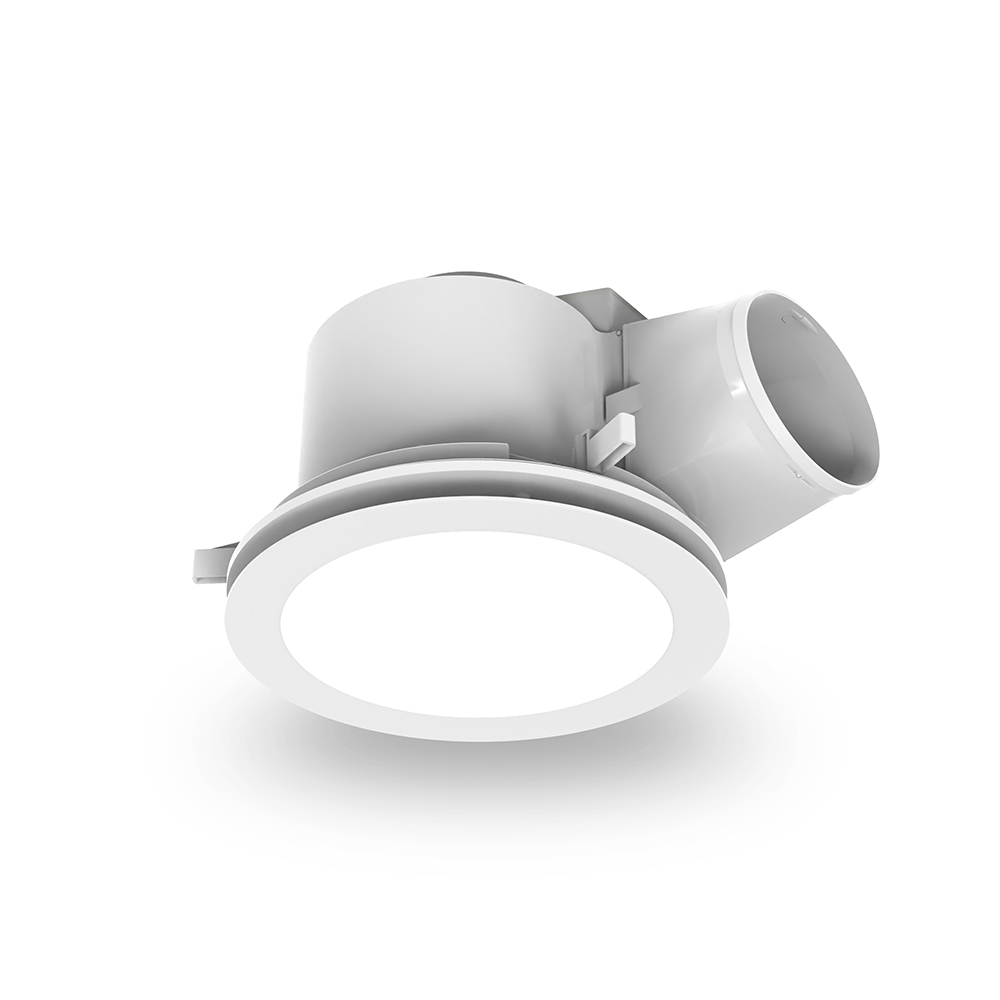

240mm 19W Ducted High Velocity DC Exhaust Fan | Tri-CCT Light | IPx4 Rated | Low Noise 42 dB | by atom

BRAND: Atom
SKU: VENTURA/240/LT/WH/RD
$143.60 List price: $173.70
+
The 240mm 19W Ducted High Velocity DC Exhaust Fan is designed for efficient ventilation in residential and commercial spaces. Featuring a Tri-CCT light with options for warm, cool, and daylight, this fan operates quietly at just 42 dB. With an IPx4 rating for moisture resistance and a durable ball bearing motor, it’s perfect for bathrooms and kitchens, ensuring optimal air extraction and energy efficiency.

Alternatively Known As: Ducted Exhaust Fan with Tri-CCT Light, High Velocity Bathroom Fan, 240mm Exhaust Fan with Light

Technical Specifications
  • Input Voltage: 230Vac (216Vac - 253Vac)
  • Input Frequency: 50 Hz
  • Motor Wattage: 20 W
  • Air Extraction Rate: 420 m3/hr
  • Noise Level: 42 dB
  • Fan Type: Centrifugal
  • Motor Type: Ball bearing
  • IP Rating: IPx4
  • Installation Type: Recessed
  • Colour Rendering Index (CRI): >80
  • CCT Configuration: Tri-CCT (3000K, 4000K, 5000K)
  • Lamp Output: Warm White 1600 lm, Cool White 1700 lm, Daylight 1650 lm
  • Dimmable: No
  • Dimensions (H x L x W): 240mm x 240mm x 240mm
  • Weight: 2.5 kg
Key Features
  • Recessed installation with matt white finish
  • Tri-CCT lighting with cool white, warm white, and daylight options
  • IPx4 rated for moisture resistance
  • Ball bearing motor for durability
  • Centrifugal fan type for efficient air extraction
  • Low noise operation at 42 dB
  • Duct outlet size 125 mm
Professional Installation Requirements
  • Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
  • Residential bathrooms and kitchens
  • Commercial washrooms and utility areas
  • Ventilation for ducted exhaust systems
Standards & Compliance
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS CISPR 15
  • AS/NZS 4268
  • AS/NZS CISPR 14
Environmental Benefits
  • Energy-efficient DC motor reduces power consumption
  • Tri-CCT lighting allows for customizable energy use
  • IPx4 rating ensures long product life reducing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Atom's warranty policy for details.

Available Now

The Atom 240mm 19W Ducted High Velocity DC Exhaust Fan with Tri-CCT Light is available for immediate purchase, ideal for residential and commercial ventilation applications.
