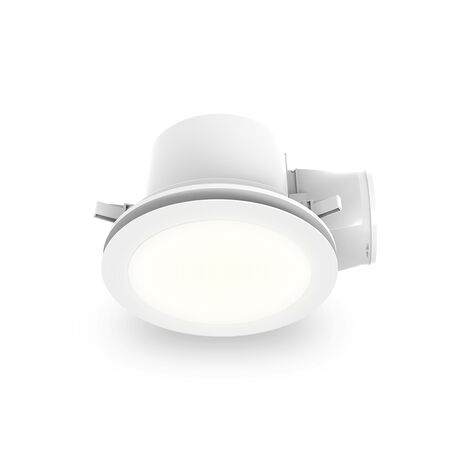

295mm 65W Ducted High Velocity Exhaust Fan | IPx4 Rated | Centrifugal Design | Quiet Operation at 45 dB | by atom
The 295mm 65W Ducted High Velocity Exhaust Fan is designed for efficient air extraction in residential and commercial spaces. With a powerful centrifugal motor and an IPx4 rating for moisture resistance, this fan operates quietly at just 45 dB, making it perfect for bathrooms and kitchens. Its recessed installation and stylish round white fascia ensure a seamless fit in any decor, while the durable ball bearing motor guarantees long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ducted Exhaust Fan, High Velocity Bathroom Fan, Round Fascia Exhaust Fan, 65W Ventilation Fan
Technical Specifications
- IP Rating: IPx4
- Installation Type: Recessed
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Motor Wattage: 65 W
- Fan Type: Centrifugal
- Air Extraction Rate: 640 m3/hr
- Noise Level: 45 dB
- Motor Type: Ball bearing
- Flex & Plug Length: 900 mm
- Wiring Type: Re-wireable Flex & Plug (3 pin)
- Working Temperature Range: -10 to 40 °C
- Product Design Life: 10 years based on 2 hours daily use
- Dimensions (H x L x W): 295mm x 150mm x 295mm
- Weight: 3.5 kg
Key Features
- High velocity centrifugal fan for efficient air extraction
- Recessed installation with matt white round fascia
- Ball bearing motor for durability
- IPx4 rated for moisture resistance
- Quiet operation at 45 dB noise level
- Flexible wiring with re-wireable 3 pin flex and plug
- Designed for continuous operation with 10 years product design life
Professional Installation Requirements
- Professional installation by a qualified electrician or HVAC technician is recommended to ensure proper ducting, electrical connection, and compliance with safety standards.
Applications
- Residential bathrooms and kitchens for ventilation
- Commercial washrooms and utility areas
- General air extraction in ducted ventilation systems
Standards & Compliance
- Complies with AS/NZS 60335.1
- Complies with AS/NZS 60335.2.80
- Complies with AS CISPR 14
- Complies with AS/NZS 60598.1
- Complies with AS/NZS 60598.2.2
- Complies with AS/NZS CISPR 14.1
- Complies with AS CISPR 15
Environmental Benefits
- Energy-efficient motor reduces power consumption
- Long product design life minimizes waste and replacement frequency
Warranty Information
3 years return to base warranty or 2500 operating hours, whichever occurs first.
Available Now
The Atom 295mm 65W Ducted High Velocity Exhaust Fan with Round White Fascia is available for immediate purchase, ideal for residential and commercial ventilation applications.
