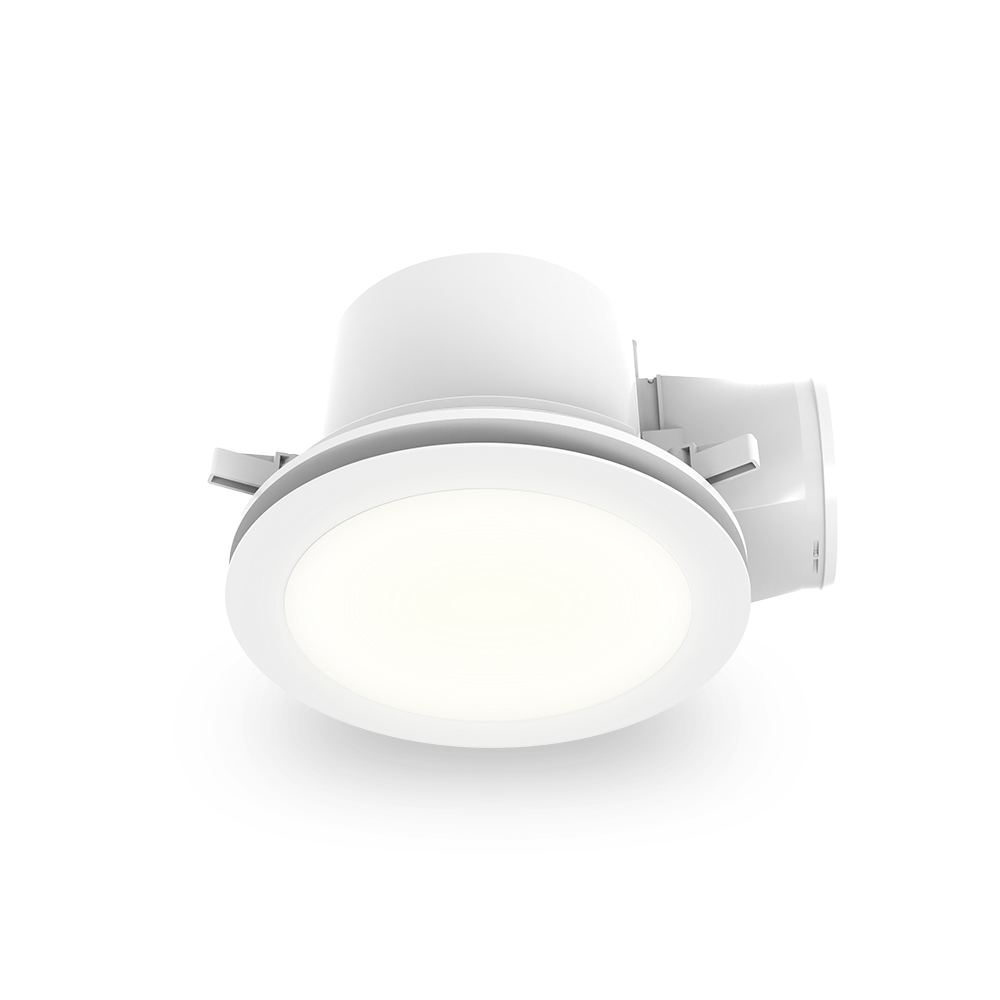

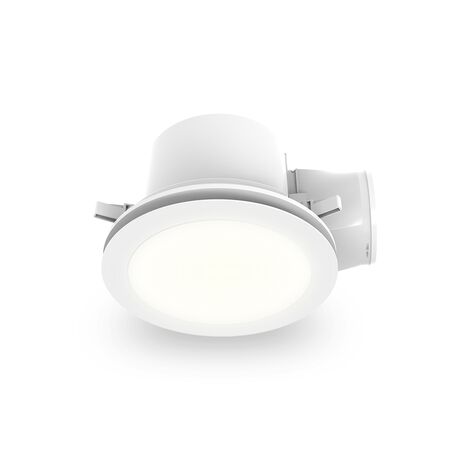

240mm 35W Ducted High Velocity Exhaust Fan | IPx4 Rated | Low Noise 41 dB | Recessed Installation | by atom
The 240mm 35W Ducted High Velocity Exhaust Fan is designed for efficient ventilation in residential bathrooms and kitchens. With an IPx4 rating for moisture resistance and a low noise level of 41 dB, this fan ensures a quiet and effective air extraction. Built for durability with a ball bearing motor, it’s perfect for continuous operation and complies with Australian standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ducted Exhaust Fan, High Velocity Bathroom Fan, 240mm Exhaust Fan, Round Fascia Exhaust Fan
Technical Specifications
- IP Rating: IPx4
- Installation Type: Recessed
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Working Temperature Range: -10 to 40 °C
- Motor Wattage: 35 W
- Motor Type: Ball bearing
- Fan Type: Centrifugal
- Air Extraction Rate: 330 m3/hr
- Noise Level: 41 dB
- Driver: Flex & Plug with 900 mm lead
- Wiring Type: Re-wireable Flex & Plug (3 pin)
- Product Design Life: 10 years based on 2 hours daily use
- Dimensions (H x L x W): 240mm x 240mm x 240mm
- Weight: 2.5 kg
Key Features
- Recessed installation type with matt white finish
- IPx4 rated for moisture resistance
- Ball bearing motor for durability
- Centrifugal fan type providing high air extraction
- Low noise level at 41 dB
- Flexible wiring with re-wireable 3 pin flex and plug
- Designed for continuous operation with a 10-year product design life
Professional Installation Requirements
- Professional installation by a qualified electrician or licensed HVAC technician is recommended to ensure compliance with electrical and building codes.
Applications
- Residential bathrooms and kitchens
- Commercial washrooms and utility areas
- Ventilation for ducted air extraction systems
Standards & Compliance
- Complies with AS/NZS 60335.1
- Complies with AS/NZS 60335.2.80
- Complies with AS CISPR 14
- Complies with AS/NZS 60598.1
- Complies with AS/NZS 60598.2.2
- Complies with AS/NZS CISPR 14.1
- Complies with AS CISPR 15
Environmental Benefits
- Energy-efficient 35W motor reduces power consumption
- Long product design life minimizes waste and replacement frequency
Warranty Information
3 years return to base warranty or 2500 operating hours, whichever occurs first.
Available Now
The Atom 240mm 35W ducted high velocity exhaust fan with round white fascia is available for immediate purchase, ideal for residential and commercial ventilation applications.
