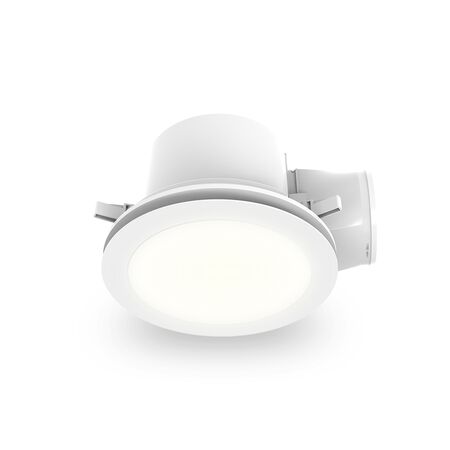

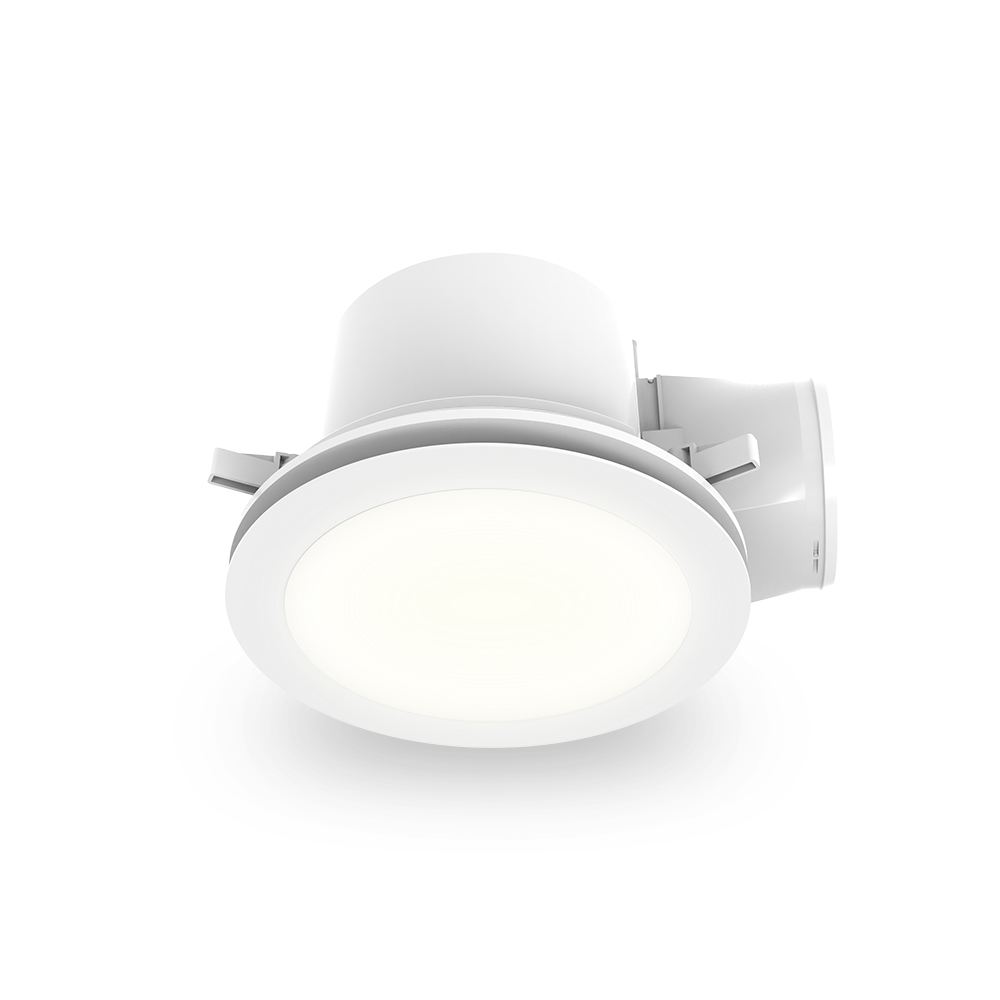

295mm 65W Ducted High Velocity Exhaust Fan | Tri-CCT Light | IPx4 Rated | Quiet Operation | by atom
The 295mm 65W Ducted High Velocity Exhaust Fan is designed for efficient ventilation in residential bathrooms and kitchens. Featuring a Tri-CCT light with a Colour Rendering Index (CRI) of over 80, this fan ensures optimal lighting while maintaining a noise level of just 45 dB. With an impressive air extraction capacity of 640 m3/hr and an IPx4 rating for moisture resistance, it's perfect for both residential and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ducted Exhaust Fan with Light, High Velocity Bathroom Fan, 295mm Exhaust Fan, Tri-CCT Exhaust Fan
Technical Specifications
- IP Rating: IPx4
- Installation Type: Recessed
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Working Temperature Range: -10 to 40 °C
- Motor Wattage: 65 W
- Fan Type: Centrifugal
- Air Extraction Rate: 640 m3/hr
- Noise Level: 45 dB
- Lamp Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT
- Driver: Flex & Plug with 900 mm lead
- Wiring Type: Re-wireable Flex & Plug (3 pin)
- Product Design Life: 10 years at 2 hours daily use
- Dimensions (H x L x W): 150mm x 295mm x 295mm
- Weight: 2.5 kg
Key Features
- 65W motor with ball bearing for durability
- Tri-CCT lighting with Colour Rendering Index (CRI) >80
- Recessed installation with matt white finish fascia
- IPx4 rated for moisture resistance
- Noise level at 45 dB for quiet operation
- Air extraction capacity of 640 m3/hr
- Flexible wiring with 900 mm re-wireable flex and plug
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential bathrooms and kitchens for ventilation
- Commercial washrooms and utility areas
- General air extraction in ducted ventilation systems
Standards & Compliance
- Complies with AS/NZS 60335.1
- Complies with AS/NZS 60335.2.80
- Complies with AS CISPR 14
- Complies with AS/NZS 60598.1
- Complies with AS/NZS 60598.2.2
- Complies with AS/NZS CISPR 14.1
- Complies with AS CISPR 15
Environmental Benefits
- Energy-efficient motor reduces power consumption
- Long product design life of 10 years minimizes waste
- Low noise operation contributes to a comfortable environment
Warranty Information
3 years return to base warranty or 2500 operating hours, whichever occurs first.
Available Now
The Atom 295mm 65W Ducted High Velocity Exhaust Fan with Round White Fascia and Tri-CCT Light is available now for immediate purchase. Ideal for residential and commercial ventilation applications.
