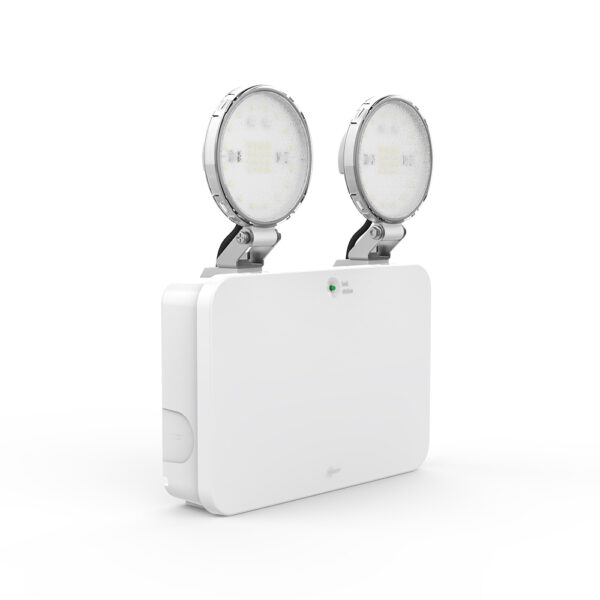

Duo Advanced Emergency Weatherproof Luminaire | IP65 & IK10 Rated | Adjustable Fitting | DALI Driver | by Ektor
The Duo Advanced Emergency Weatherproof Luminaire is designed for reliable emergency lighting in commercial and industrial settings. With an IP65 rating for weatherproofing and IK10 impact resistance, this luminaire features an adjustable fitting for directional lighting. It operates in a non-maintained mode with a 90-minute emergency duration and delivers 350 lumens, ensuring safety in emergency escape routes and outdoor environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Weatherproof Luminaire, DALI Emergency Light, Surface Mount Emergency Light, Adjustable Emergency Luminaire
Technical Specifications
- IP Rating: IP65
- IK Rating: IK10
- Maximum Wattage: 2.5 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Standby Power: 1 W
- Emergency Output Power: 2500 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 350 lm
- Driver Type: DALI DT1 Emergency or Wireless IEC62386-104 with DT1
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Operating Temperature Range: 0 to 40 °C
- Wiring Type: Re-wireable terminal block (2 or 4 pin depending on model)
- Dimensions (H x L x W): 100mm x 150mm x 250mm
- Weight: 1.2 kg
Key Features
- IP65 rated weatherproof and IK10 impact resistant
- Adjustable fitting for directional lighting
- DALI DT1 Emergency driver with wireless IEC62386-104 monitoring option
- Non-maintained emergency mode with 90 minutes duration
- Emergency lumen output of 350 lm
- Polycarbonate body and diffuser for durability
- Standby power consumption of 1 W
- Operating temperature range from 0 to 40 °C
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical and safety standards and proper integration with emergency lighting systems.
Applications
- Commercial and industrial emergency lighting
- Surface mount installations in wet or outdoor environments
- Emergency escape routes and safety lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption reduces energy waste
- Long product design life of 8 years minimizes replacement frequency and waste
Warranty Information
6 years return to base commercial use warranty.
Available Now
The Ektor Duo Advanced Emergency Weatherproof Luminaire with DALI Black is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
