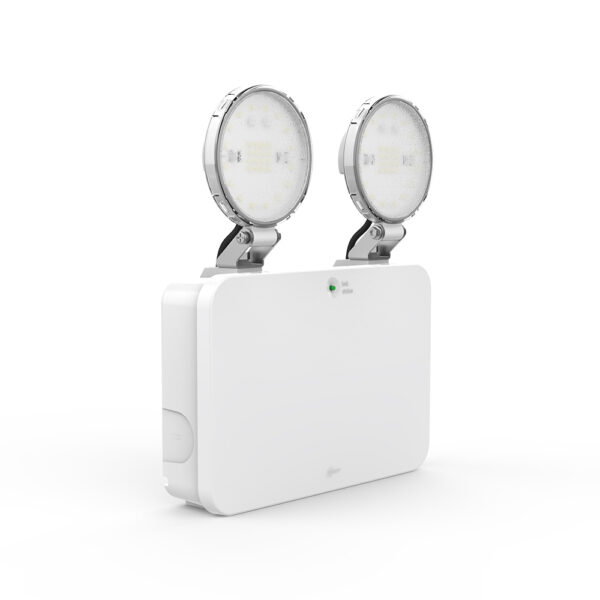

Duo Advanced Emergency Weatherproof Luminaire | IP65 & IK10 Rated | DALI Emergency Driver | by Ektor
The Duo Advanced Emergency Weatherproof Luminaire is designed for reliable emergency lighting in commercial and industrial settings. With an IP65 rating and IK10 impact resistance, this luminaire ensures durability in outdoor and weather-exposed areas. Featuring a DALI DT1 emergency driver, it provides 90 minutes of emergency illumination with a lumen output of 350, making it an ideal choice for safety compliance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Weatherproof Luminaire, DALI Emergency Light, Surface Mount Emergency Light, Wireless Emergency Luminaire
Technical Specifications
- IP Rating: IP65
- IK Rating: IK10
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 2.5 W
- Standby Power: 1 W
- Driver Type: DALI DT1 Emergency or Wireless IEC62386-104 with DT1
- Wiring Type: Re-wireable terminal block (2 or 4 pin depending on model)
- Emergency Mode: Non-Maintained
- Emergency Output Power: 2500 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 350 lumens
- Operating Temperature Range: 0 to 40 °C
- Product Design Life: 8 years
- Dimensions (H x L x W): 100mm x 150mm x 250mm
- Weight: 1.2 kg
Key Features
- IP65 rated weatherproof and IK10 impact resistant polycarbonate body and diffuser
- Adjustable fitting for directional lighting
- DALI DT1 Emergency driver with wireless IEC62386-104 monitoring options
- Non-maintained emergency mode with 90 minutes duration
- Emergency lumen output of 350 lumens
- Standby power consumption of 1W
- Operating temperature range from 0 to 40 °C
- Surface mount installation type
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial and industrial emergency lighting
- Outdoor and weather-exposed areas requiring emergency illumination
- Surface mount installations in compliance with safety standards
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 2.5W maximum wattage and 1W standby power reduces energy use.
- Long product design life of 8 years minimizes waste and replacement frequency.
Warranty Information
6 years return to base (RTB) commercial use warranty.
Available Now
The Ektor Duo Advanced Emergency Weatherproof Luminaire with DALI is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
