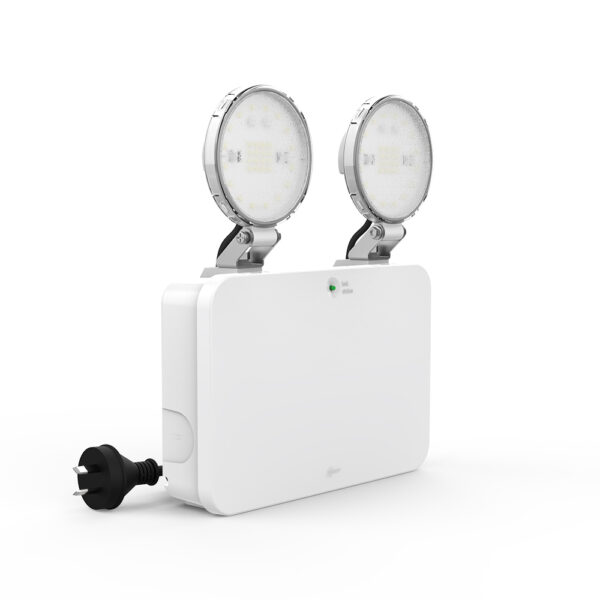

Duo Core Emergency Weatherproof Luminaire | IP65 & IK10 Rated | Adjustable Directional Lighting | by Ektor
The Duo Core Emergency Weatherproof Luminaire is designed for reliable emergency lighting in commercial and industrial settings. With an IP65 rating for weather resistance and IK10 impact protection, this adjustable luminaire ensures safety and compliance. It features a non-maintained emergency mode with a 90-minute duration and an impressive 430 lumens output, making it perfect for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Weatherproof Light, Emergency Surface Mount Luminaire, Adjustable Emergency LED Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK10
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 2.5 W
- Standby Power: 1 W
- Driver Type: Fixed output
- Flex & Plug Length: 1200 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Emergency Mode: Non-Maintained
- Emergency Output Power: 2700 mW
- Emergency Duration: 90 mins
- Emergency Lumen Output: 430 lm
- Product Design Life: 6 years
- Dimensions (H x L x W): 100mm x 150mm x 300mm
- Weight: 1.2 kg
Key Features
- IP65 rated weatherproof and IK10 impact resistant polycarbonate body and diffuser
- Adjustable fitting for directional lighting
- Non-maintained emergency mode with 90 minutes duration
- Fixed output driver included with re-wireable 2 pin flex and plug
- Emergency lumen output of 430 lumens
- Standby power consumption of 1W
- Operating temperature range from 0 to 40 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper emergency lighting functionality.
Applications
- Emergency lighting for commercial and industrial buildings
- Surface mount installation in outdoor and indoor weather-exposed areas
- Non-maintained emergency lighting for safety compliance
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 2.5W maximum wattage and 1W standby power reduces energy use
- Long product design life of 6 years minimizes waste and replacement frequency
Warranty Information
5 years return to base warranty for commercial use.
Available Now
The Ektor Duo Core Emergency Weatherproof Luminaire - Black is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
