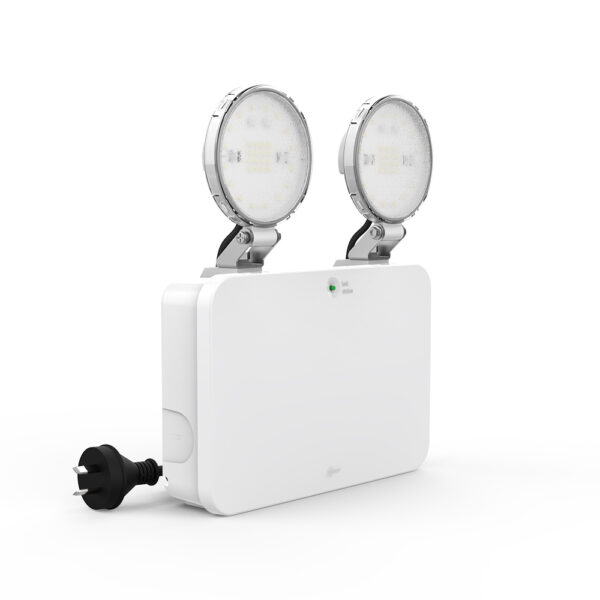

Duo Core Emergency Weatherproof Luminaire | IP65 & IK10 Rated | Adjustable Fitting | by Ektor
Duo Core Emergency Weatherproof Luminaire is designed for reliable emergency lighting in commercial and industrial settings. With an IP65 rating for weatherproof protection and IK10 for high impact resistance, this luminaire ensures safety and durability. Ideal for both indoor and outdoor applications, it features a non-maintained emergency mode with a 90-minute duration and an impressive emergency lumen output of 430 lm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Weatherproof Light, Duo Core Emergency Light, IP65 Emergency Luminaire, Weatherproof Emergency LED Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK10
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 2.5 W
- Standby Power: 1 W
- Driver Type: Fixed output
- Flex & Plug Length: 1200 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Emergency Mode: Non-Maintained
- Emergency Output Power: 2700 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 430 lm
- Replacement Battery Code: 18096
- Product Design Life: 6 years
- Dimensions (H x L x W): 100mm x 150mm x 300mm
- Weight: 1.2 kg
Key Features
- IP65 rated for weatherproof protection
- IK10 rated for high impact resistance
- Adjustable fitting for directional lighting
- Non-maintained emergency mode with 90 minutes duration
- Emergency lumen output of 430 lm
- Fixed output driver included
- Polycarbonate body and diffuser for durability
- Standby power consumption of 1 W
- 1200 mm re-wireable flex and plug (2 pin)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper emergency lighting functionality.
Applications
- Emergency lighting for commercial and industrial buildings
- Surface mount installation in indoor and outdoor environments
- Suitable for areas requiring weatherproof and impact-resistant emergency lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs for Buildings
Environmental Benefits
- Low power consumption with 2.5 W maximum wattage
- Long product design life of 6 years reduces waste and replacement frequency
- Energy-efficient LED technology
Warranty Information
5 years return to base (RTB) warranty for commercial use.
Available Now
The Ektor Duo Core Emergency Weatherproof Luminaire is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
