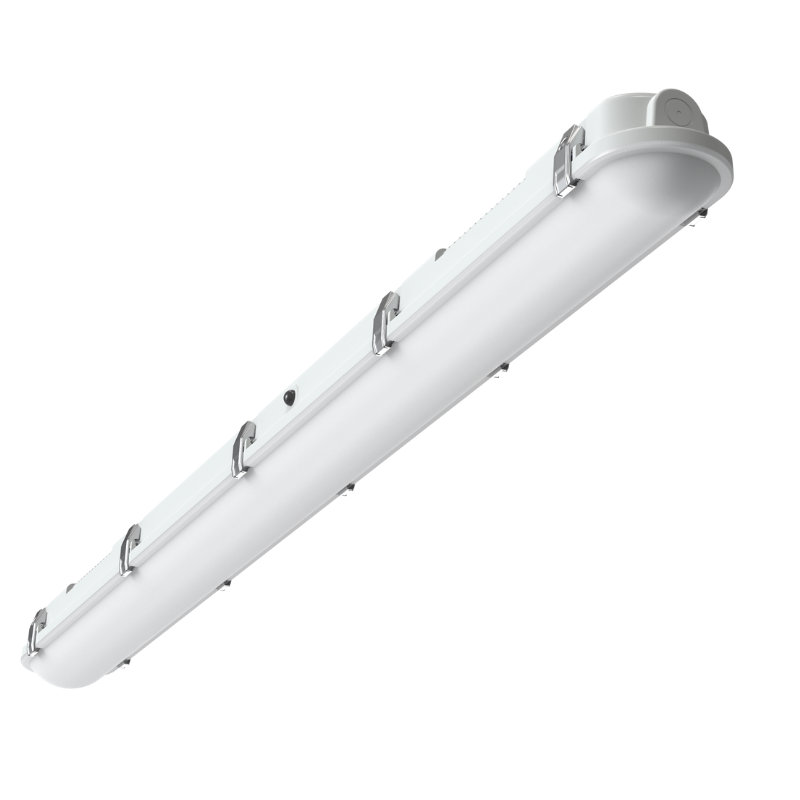

'Dura G2 Weatherproof Emergency Batten 1220mm 18/24/30/36W Haneco'
'Haneco Dura G2 weatherproof emergency batten features 1220mm length, 18/24/30/36W power and 4000/4500/5000K CCT. Ideal for emergency lit carparks.'
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DURA12-EM-G2, Haneco Emergency Weatherproof LED Batten, Emergency Triproof Batten
Technical Specifications
- Selectable Power: 18 W / 24 W / 30 W / 36 W
- Selectable CCT: 4000 K / 4500 K / 5000 K
- Lumen Output: 2420–4658 lm, depending on power and CCT
- Input Voltage: 220–240 Vac, 50/60 Hz
- Power Factor: >0.9
- Beam Angle: 120°
- Colour Rendering Index: >80
- Ingress Protection: IP65
- Impact Protection: IK08
- Emergency Battery: LiFePO4, 6.4 V, 1.6 Ah
- Emergency Discharge Time: 1.5 hours
- Emergency Recharge Time: 24 hours
- Emergency Test Type: Manual test
- Emergency Classification: C0:D100, C90:D63
- Emergency Operation: Maintained and non-maintained
- Operating Temperature: 0°C to 40°C
- Electrical Classification: Class I
- Body and Diffuser Material: Polycarbonate
- Connection: PA12 terminals
- Dimming: Non-dimmable
- Projected Lifespan: More than 102,000 hours at 40°C, L70
- Warranty: 5 years, excluding battery
- Dimensions (H x L x W): 75mm x 1220mm x 102mm
- Weight: 1.61 kg
Key Features
- Weatherproof IP65 construction for demanding indoor and outdoor-adjacent environments
- IK08 impact resistance for car parks, warehouses and public facilities
- Selectable 18 W, 24 W, 30 W and 36 W output
- Selectable 4000 K, 4500 K and 5000 K colour temperature
- Integrated LiFePO4 emergency battery with 1.5-hour discharge duration
- Suitable for maintained and non-maintained emergency operation
- Flicker-free light output
- Surface-mount or suspended installation options
- Manual emergency function testing
- Polycarbonate body and opal diffuser
- Compatible with the DURA G2 plug-in microwave sensor kit
Professional Installation Requirements
- Installation and electrical connection must be completed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian electrical and emergency-lighting requirements. The emergency battery requires at least 24 hours of charging to achieve the specified discharge duration.
Applications
- Emergency lighting for car parks and carports
- Warehouses and storage facilities
- Workshops and manufacturing facilities
- Loading docks and utility corridors
- Public facilities and commercial buildings
- Garages, sheds and covered outdoor areas
- Kitchen and food-preparation areas
- Back-of-house and general industrial areas
Standards & Compliance
- AS/NZS 60598.1:2017 including amendments A1 and A2
- AS/NZS 60598.2.1:2014 including amendments A1 and A2
- AS/NZS 60598.2.22:2019 for luminaires for emergency lighting
- AS/NZS 2293.3:2018 including amendment A1 for emergency lighting system performance
- AS/NZS 61347.1:2016 including amendments A1 and R1
- AS/NZS 61347.2.13:2018 including amendment A1
- AS CISPR 15:2017
Environmental Benefits
- High-efficiency LED design reduces energy consumption compared with traditional fluorescent battens
- Projected service life exceeding 102,000 hours can reduce replacement frequency and material waste
- Selectable power output allows lighting levels to be matched to application requirements, helping avoid unnecessary energy use
- LiFePO4 emergency battery chemistry supports rechargeable emergency operation
- Polycarbonate components and electronic materials can be separated for appropriate end-of-life recycling where local facilities accept them
Warranty Information
5-year direct replacement warranty for the luminaire, excluding the emergency battery, subject to Haneco warranty terms and correct installation by a licensed electrician.
Available Now
Available through Haneco and authorised Australian electrical wholesalers and distributors.
