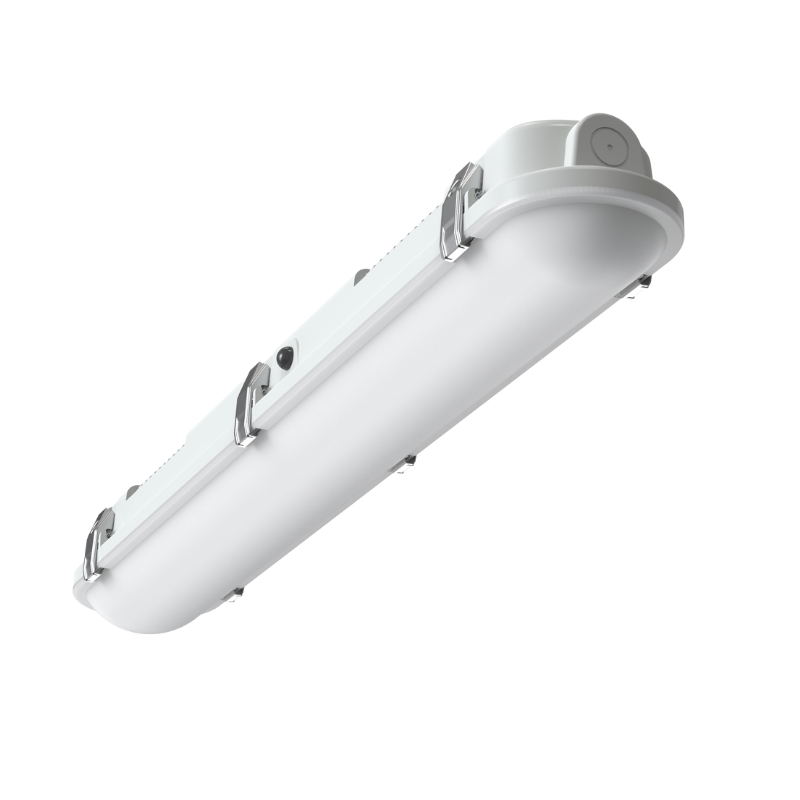

'Dura G2 Weatherproof Emergency Batten 655mm 10/13/15/18W Haneco'
'Haneco Dura G2 weatherproof emergency batten features 655mm length, 10/13/15/18W power and 4000/4500/5000K CCT. Ideal for emergency lit carparks.'
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Haneco DURA06-EM-G2, Emergency Weatherproof LED Batten, Emergency Triproof Batten, LED Emergency Batten
Technical Specifications
- Product Code: DURA06-EM-G2
- Rated Power: 10 / 13 / 15 / 18 W
- Colour Temperature: 4000 / 4500 / 5000 K selectable
- Emergency Discharge Time: 3 hours
- Battery Type: LiFePO4 3.2 V, 3.2 Ah
- Battery Recharge Time: 24 hours
- Emergency Charging Power: 3 W
- Emergency Standby Power: Less than 1 W
- Emergency Operation: Maintained and non-maintained
- Emergency Test Type: Manual test
- Emergency Classification: C0:D40, C90:D25
- Input Voltage: 220–240 Vac, 50/60 Hz
- Power Factor: Greater than 0.9
- Beam Angle: 120°
- Ingress Protection: IP65
- Impact Protection: IK08
- Insulation Class: Class I
- Body Material: Polycarbonate
- Diffuser Material: Opal polycarbonate
- Mounting: Surface mount or suspended
- Operating Temperature: 0°C to 40°C for emergency operation
- Flicker-Free: Yes
- Projected Lifespan: Greater than 102,000 hours at 40°C, L70
- Fascia Colour: Grey
- Driver: Integral
- Dimensions (H x L x W): 75mm x 655mm x 102mm
- Weight: 0.99 kg
Key Features
- Emergency weatherproof batten for car parks, warehouses, workshops and public facilities
- Selectable 10 W, 13 W, 15 W and 18 W output
- Selectable 4000 K, 4500 K and 5000 K colour temperature
- Provides up to 3 hours of emergency illumination after mains failure
- LiFePO4 emergency battery with manual test function
- IP65 protection against dust and water ingress
- IK08 impact resistance for demanding commercial environments
- Maintained and non-maintained emergency operation
- Flicker-free LED output with 120° beam angle
- Surface or suspended mounting options
- Long projected LED life exceeding 102,000 hours at L70
- HACCP-approved DURA G2 platform
Professional Installation Requirements
- Installation, electrical connection, testing and commissioning should be performed by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable emergency-lighting requirements. Emergency systems must be tested and maintained in accordance with AS/NZS 2293.
Applications
- Emergency lighting for enclosed car parks and carports
- Warehouses and storage facilities
- Workshops, loading areas and manufacturing facilities
- Public facilities and commercial buildings
- Garages, sheds, balconies and covered outdoor areas
- Temporary installations requiring weatherproof emergency illumination
Standards & Compliance
- AS/NZS 60598.1:2017 including amendments A1 and A2
- AS/NZS 60598.2.1:2014 including amendments A1 and A2
- AS/NZS 60598.2.22:2019 for luminaires for emergency lighting
- AS/NZS 2293.3:2018 including A1 for emergency lighting luminaires
- AS/NZS 61347.1:2016 including A1 and R1
- AS/NZS 61347.2.13:2018 including A1
- AS CISPR 15:2017 for radio disturbance characteristics of lighting equipment
Environmental Benefits
- LED technology provides lower energy consumption than conventional fluorescent battens
- Selectable wattage allows output to be matched to application requirements, helping avoid unnecessary energy use
- Long projected service life can reduce replacement frequency and material waste
- LiFePO4 battery chemistry supports rechargeable emergency operation
- Polycarbonate body and diffuser materials can be separated for appropriate recycling at end of service life
Warranty Information
Five-year direct replacement warranty for the luminaire, excluding the emergency battery, subject to Haneco warranty terms and licensed installation requirements.
Available Now
Available through Haneco and authorised Australian electrical wholesalers and distributors.
