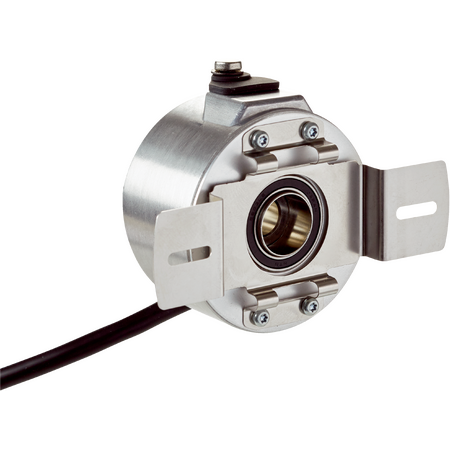

DUS60E-RHKK0ABA | Incremental encoders

BRAND: SICK
SKU: 1097752
$802.30 List price: $1,008.40
+ −
30 Days Return Delivery Options
The SICK DUS60E-RHKK0ABA is a high-performance incremental encoder featuring a through hollow shaft design, programmable outputs, and robust construction for industrial automation and safety applications.

Product Name/Title: DUS60E-RHKK0ABA | Incremental encoders

Brand: SICK

SKU: 1097752

Alternatively Known As: Incremental rotary encoder, shaft encoder, rotary position sensor, SICK encoder DUS60E

Technical Specifications
  • Measuring step: 90° electric/pulses per revolution
  • Measuring step deviation: ±18° per pulses per revolution
  • Duty cycle: ≤ 0.5 ± 5%
  • Output frequency: > 60 kHz
  • Load current: ≤ 30 mA per channel
  • Operating current: ≤ 120 mA without load
  • Supply voltage: 4.75 to 30 V
  • Connection type: 8-wire cable, 1.5 m length
  • Reference signal: 1, positioned at 180°, gated with A
  • Mechanical design: Through hollow shaft with 15 mm diameter
  • Flange type: 2-point stator coupling, slot, hole diameter 63 mm – 83 mm
  • Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
  • Start-up torque: 0.5 Ncm at +20 °C
  • Operating torque: 0.4 Ncm at +20 °C
  • Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
  • Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: 1,500 min⁻¹
  • Moment of inertia of rotor: 50 gcm²
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Angular acceleration: ≤ 500,000 rad/s²
  • EMC compliance: EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP65
  • Operating temperature range: –30 °C to +90 °C
  • Storage temperature range: –40 °C to +75 °C
  • Shock resistance: 100 g (EN 60068-2-27)
  • Vibration resistance: 30 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
  • Dimensions (H x L x W): 63mm x 83mm x 63mm
  • Weight: 0.25 kg
Key Features
  • Incremental communication interface with TTL/HTL selectable output
  • 6-channel output with programmable DIP switch parameters
  • Through hollow shaft mechanical design with 15 mm shaft diameter
  • High operating speed up to 1,500 min⁻¹
  • Robust aluminum housing and flange with IP65 enclosure rating
  • Reverse polarity and short-circuit protection
  • Low start-up and operating torque
  • High bearing lifetime and resistance to shocks and vibration
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper configuration and safety compliance.
Applications
  • Industrial automation and control systems
  • Position and speed measurement in machinery
  • Robotics and conveyor systems
  • Safety-related monitoring applications
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Low power consumption of ≤ 1.25 W reduces energy usage
  • Durable materials and long bearing lifetime minimize replacement frequency and waste
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK DUS60E-RHKK0ABA Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
