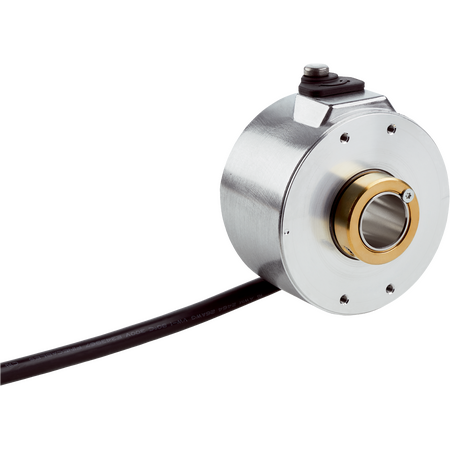

DUS60E-TEKKAACA | Incremental encoders
The SICK DUS60E-TEKKAACA is a high-performance incremental encoder featuring a 6-channel output, programmable parameters, and robust IP65 rated aluminum housing, ideal for industrial automation and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DUS60E-TEKKAACA | Incremental encoders
Brand: SICK
SKU: 1090524
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Duty cycle: ≤0.5 ±5%
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Output frequency: up to 60 kHz
- Load current: ≤30 mA per channel
- Operating current: ≤120 mA without load
- Supply voltage: 4.75 to 30 V
- Connection type: 8-wire cable, 1.5 m length
- Shaft diameter: 12 mm front clamp
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature: -30°C to +90°C
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 6-channel output
- Programmable via DIP switch for pulses per revolution, output voltage, and direction of rotation
- High output frequency up to 60 kHz
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +90°C
- Low start-up and operating torque for minimal mechanical load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUS60E-TEKKAACA Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
