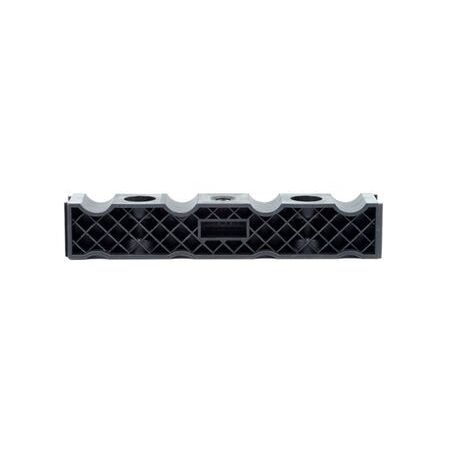

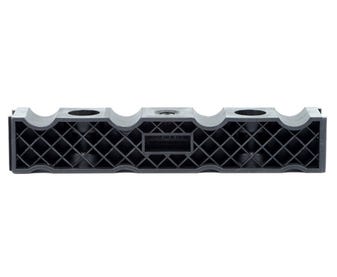

Dutch Clamp IM Type | 4 x 12-32 | Durable Steel Construction | Easy Installation by Cabac
Dutch clamp IM type 4 x 12-32 designed for secure fastening—ideal for construction and electrical applications. Built for professionals, with durable steel construction ensuring long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dutch Clamp IM Type | 4 x 12-32 | Durable Steel Construction | Easy Installation by BrandName
Brand: Cabac
SKU: DC-IM4X12-32
Alternatively Known As: IM Type 4 Cable Clamp, Dutchclamp IM Cable Block, Medium Voltage Cable Clamp, High Voltage Cable Clamp
Technical Specifications
- Suitable for cable diameters from 12 mm to 32 mm
- Manufactured from glass fibre reinforced polyamide
- Certified in accordance with NEN-EN-IEC 61914:2009
- Self-extinguishing V-0 (UL94) rating
- Halogen free
- Temperature range: -40°C to 125°C (225°C momentarily)
- No magnetism or electrical conductivity
- Resistant to oils, fats, chemicals, frost, heat, UV, ozone, salt, moisture, acids, and nuclear radiation
- Dimensions (H x L x W): 40mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Resistant to gigantic short-circuit currents/forces
- Stackable design with dovetail joint for lateral coupling
- Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, acids, and nuclear radiation
- Self-extinguishing V-0 (UL94) and halogen free
- Temperature range from -40°C to 125°C (225°C momentarily)
- No magnetism or conductivity
- Custom mounting available with simple installation
- Fastening materials can be supplied to size
- No oxidation, corrosion or sharp angles
- Recyclable
- Lifetime product warranty
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure fastening and compliance with electrical safety standards.
Applications
- Securing single or multicore medium and high voltage cables
- Electrical installations requiring short-circuit resistant cable fastening
- Industrial and commercial cable management systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Recyclable materials reduce environmental impact
- Durable construction extends product life and reduces waste
Warranty Information
Lifetime product warranty provided by the manufacturer.
Available Now
The Cabac DUTCH CLAMP IM TYPE 4 X 12-32 is available for immediate purchase, ideal for electrical cable management in industrial and commercial applications.
