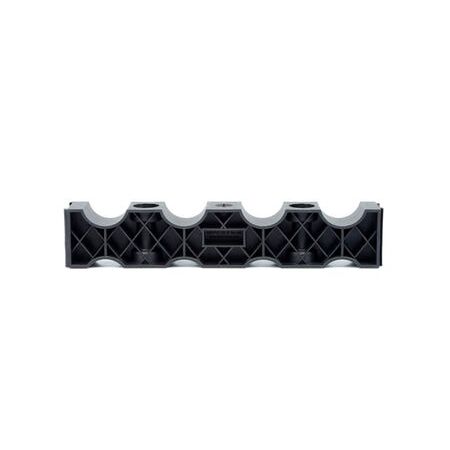

Dutch Clamp IM Type | 4 x 32-48 | Durable Steel Construction | Easy Installation by Cabac
Dutch clamp IM type 4 x 32-48 designed for secure fastening—ideal for electrical and construction applications. Built for durability with easy installation, ensuring reliable performance in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for cable diameters from 32 mm to 48 mm
- Material: Glass fibre reinforced polyamide
- Certified in accordance with NEN-EN-IEC 61914:2009
- Temperature range: -40°C to 125°C (225°C momentarily)
- Non-magnetic and non-conductive
- Resistant to oils, fats, chemicals, frost, heat, UV, ozone, salt, moisture, acids, and nuclear radiation
- Self-extinguishing V-0 (UL94), Halogen free
- Dimensions (H x L x W): 40mm x 100mm x 80mm
- Weight: 0.3 kg
Key Features
- Resistant to gigantic short-circuit currents/forces
- Stackable design with dovetail joint coupling
- Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, acids, and nuclear radiation
- Self-extinguishing V-0 (UL94) and halogen free
- Temperature range from -40°C to 125°C (225°C momentarily)
- Non-magnetic and non-conductive
- Custom mounting available with simple installation
- Fastening materials can be supplied to size
- No oxidation, corrosion or sharp angles
- Recyclable material
- Lifetime product warranty
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper fastening and compliance with electrical safety standards.
Applications
- Securing single or multicore medium and high voltage cables in industrial and electrical installations
- Suitable for environments with high short-circuit forces
- Cable management in harsh chemical, UV, and temperature conditions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable glass fibre reinforced polyamide
- Halogen free and self-extinguishing material reduces environmental hazards
- Durable design reduces need for frequent replacements
Warranty Information
Lifetime product warranty provided by the manufacturer.
Available Now
The Cabac DUTCH CLAMP IM TYPE 4 X 32-48 is available for immediate purchase, ideal for electrical cable management in industrial and high voltage applications.
